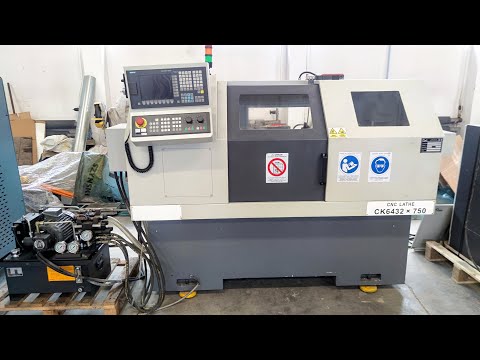

CNC Lathe --- CK6432 X 750
CNC Lathe --- CK6432 X 750 was manufactured by the machine manufacturer ---. Machine --- CK6432 X 750 was built in 2018 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 2018 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
Technical parameters | |
|---|---|
| Maximum turning length (Z-axis) | 500 mm |
| Turning diameter over bed (max) | 360 mm |
| Turning diameter over cross slide (max) | 150 mm |
| Maximum travel length in the X-axis | 350 mm |
| Number of spindles | 1 pcs |
| Diameter of the spindle bore | 45 mm |
| Minimum rotary speed of the main spindle | 150 1/min |
| Maximum rotary speed of the main spindle | 2500 1/min |
| Number of tool turrets | 1 pcs |
| Total number of tools in the turret | 6 pcs |
| Maximum travel length of the tailstock quill | 100 mm |
| Length of the lathe | 2230 mm |
| Width of the lathe | 1410 mm |
| Height of the lathe | 1990 mm |
| Weight of the lathe | 1.5 t |
Equipment | |
|---|---|
| SIEMENS SINUMERIK 808D | |
| Turret head | |
| Hydraulic chuck | |
| Technical documentation | |
