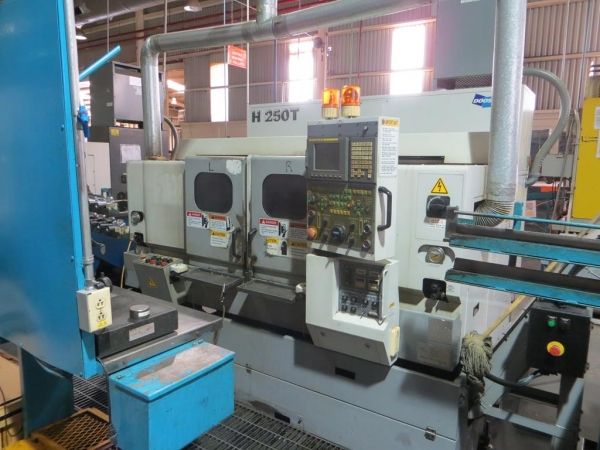

CNC Lathe DOOSAN H 250 T

Category CNC Lathes and Turning Centers DOOSAN ›
Manufacturer DOOSAN ›

ARCHIVED AD
CNC Lathe DOOSAN H 250 T was manufactured by the machine manufacturer DOOSAN. Machine DOOSAN H 250 T was built in 2006 year.

General data

Location United States
region Michigan
Year of manufacture 2006
Warranty Without warranty
Stock number 12154

Technical parameters

Maximum turning length (Z-axis) 201 mm
Turning diameter over bed (max) 450 mm
Turning diameter over cross slide (max) 250 mm
Maximum travel length in the X-axis 178 mm
Maximum feed rate in X-axis 24 m/min
Maximum feed rate in Z-axis 24 m/min
Maximum power of the main spindle 15 kW
Maximum rotary speed of the main spindle 4500 1/min
Number of tool turrets 2 pcs
Total number of tools in the turret 10 pcs
Number of CNC controlled axles 4 pcs
Weight of the lathe 4.3 t

Equipment

FANUC 18i-T
Chip transporter
Subspindle
Liquid cooling system
