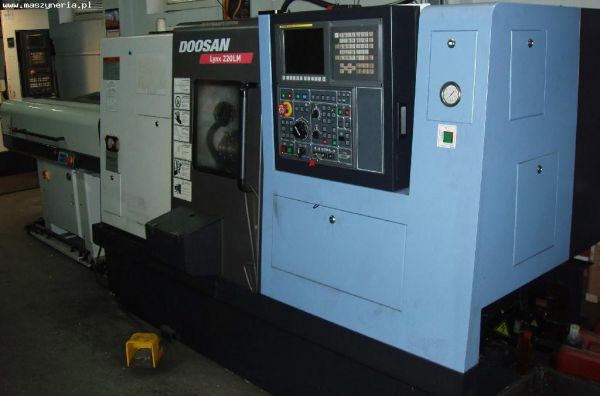

CNC Lathe DOOSAN LYNX 220 LM
CNC Lathe DOOSAN LYNX 220 LM was manufactured by the machine manufacturer DOOSAN. Machine DOOSAN LYNX 220 LM was built in 2010 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 2010 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Loading | The seller organizes the loading - included in the price of the machine |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Maximum turning length (Z-axis) | 600 mm |
| Turning diameter over bed (max) | 510 mm |
| Turning diameter over cross slide (max) | 170 mm |
| Maximum power of the main spindle | 2.2 kW |
| Maximum rotary speed of the main spindle | 6000 1/min |
| Workpiece weight in chuck (max) | 70 kg |
| Workpiece weight between centers (max) | 130 kg |
| Total number of tools in the turret | 12 pcs |
| Length of the lathe | 2630 mm |
| Width of the lathe | 1600 mm |
| Height of the lathe | 1655 mm |
| Weight of the lathe | 3.3 t |
Equipment | |
|---|---|
| FANUC 0-iTD | |
| CNC technology cycles | |
| Bar feeder | |
| Chip transporter | |
| Hydraulic chuck | |
| Collet chuck | |
| Technical documentation | |
