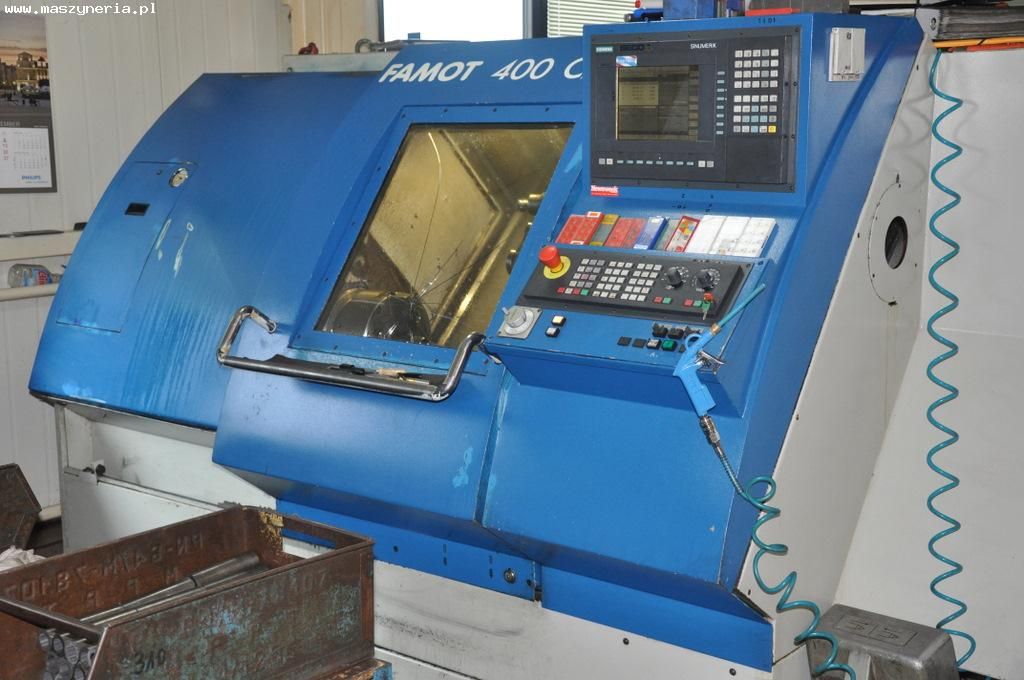

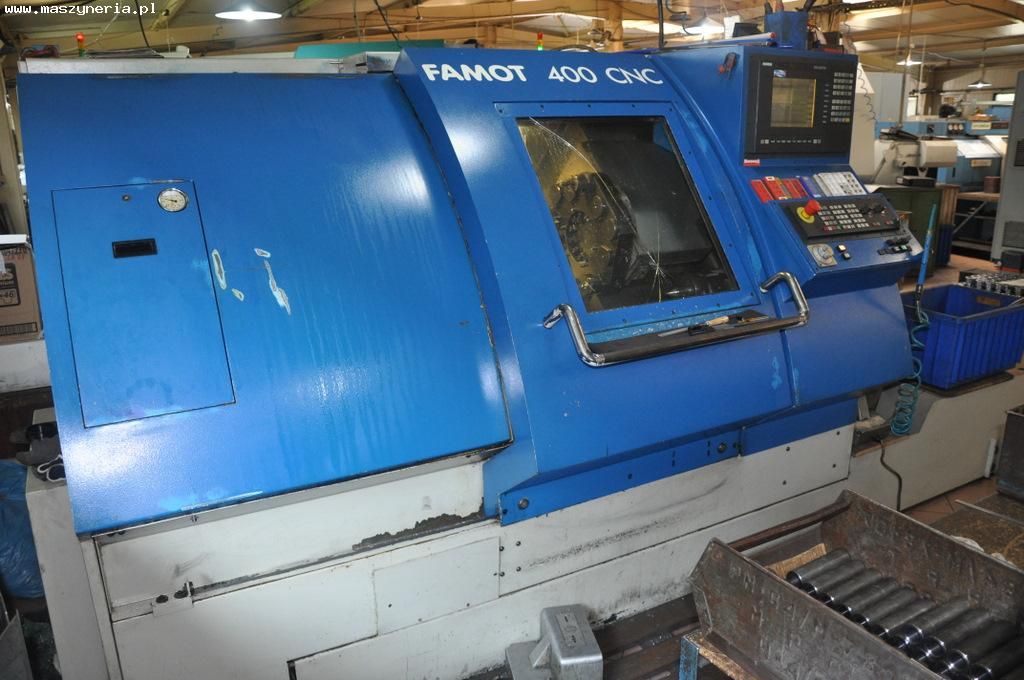

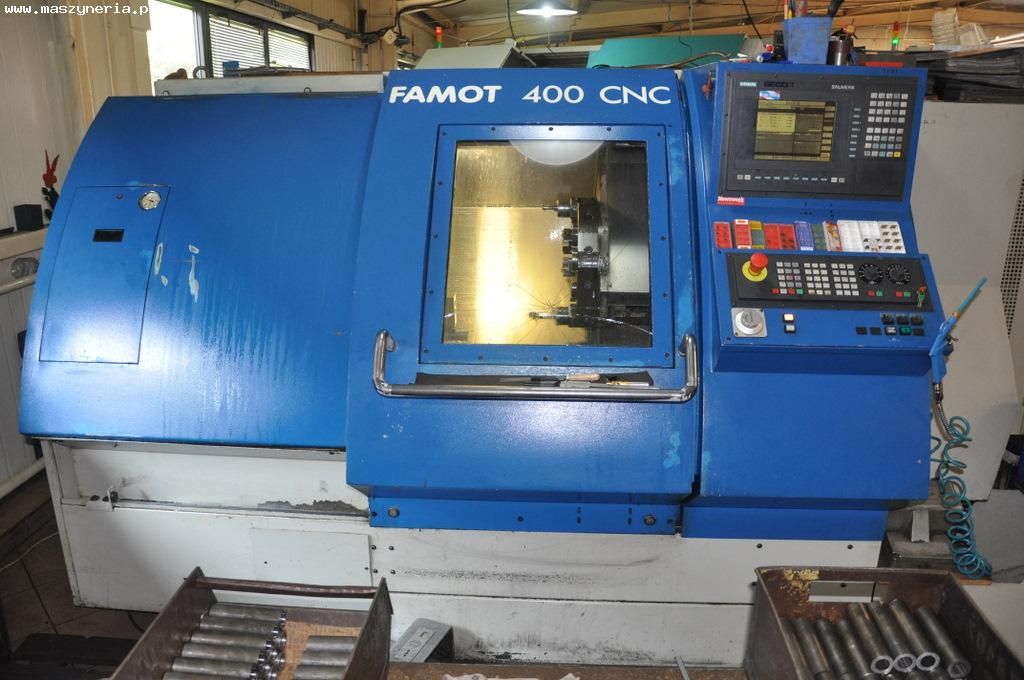

CNC Lathe FAMOT 400
CNC Lathe FAMOT 400 was manufactured by the machine manufacturer FAMOT. Machine FAMOT 400 was built in 1997 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 1997 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Loading | The seller organizes the loading - included in the price of the machine |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Turning diameter over bed (max) | 500 mm |
| Turning diameter over cross slide (max) | 290 mm |
| Maximum power of the main spindle | 15 kW |
| Diameter of the spindle bore | 72 mm |
| Minimum rotary speed of the main spindle | 40 1/min |
| Maximum rotary speed of the main spindle | 4000 1/min |
| Number of driven tools in the turret | 6 pcs |

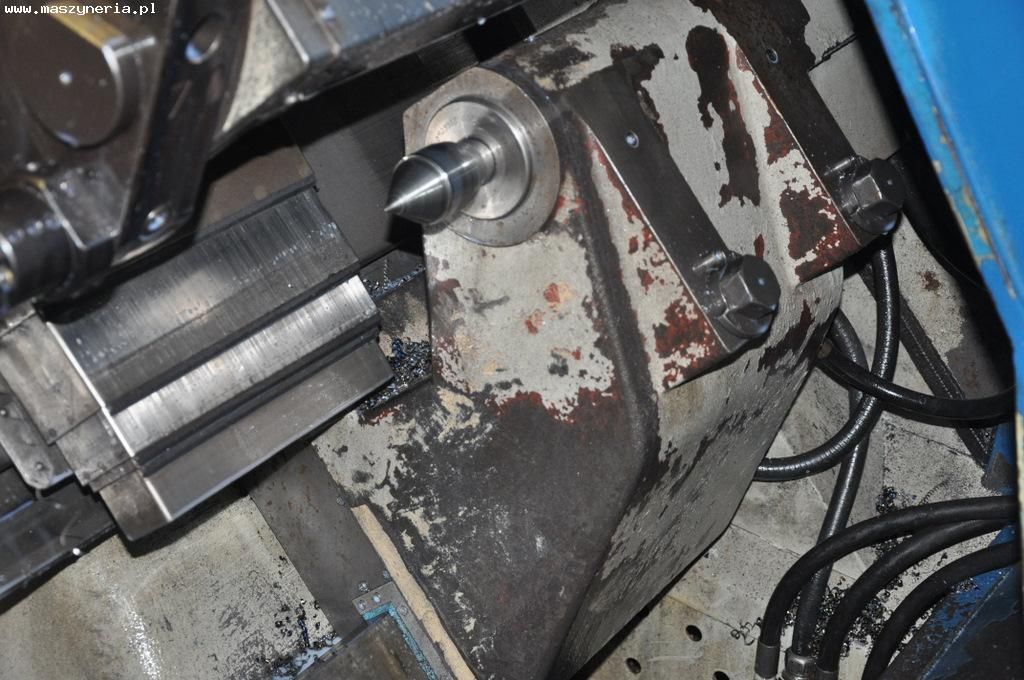

| Tailstock quill diameter | 80 mm |
| Total power demand | 25 kW |
| Weight of the lathe | 4.6 t |
Equipment | |
|---|---|

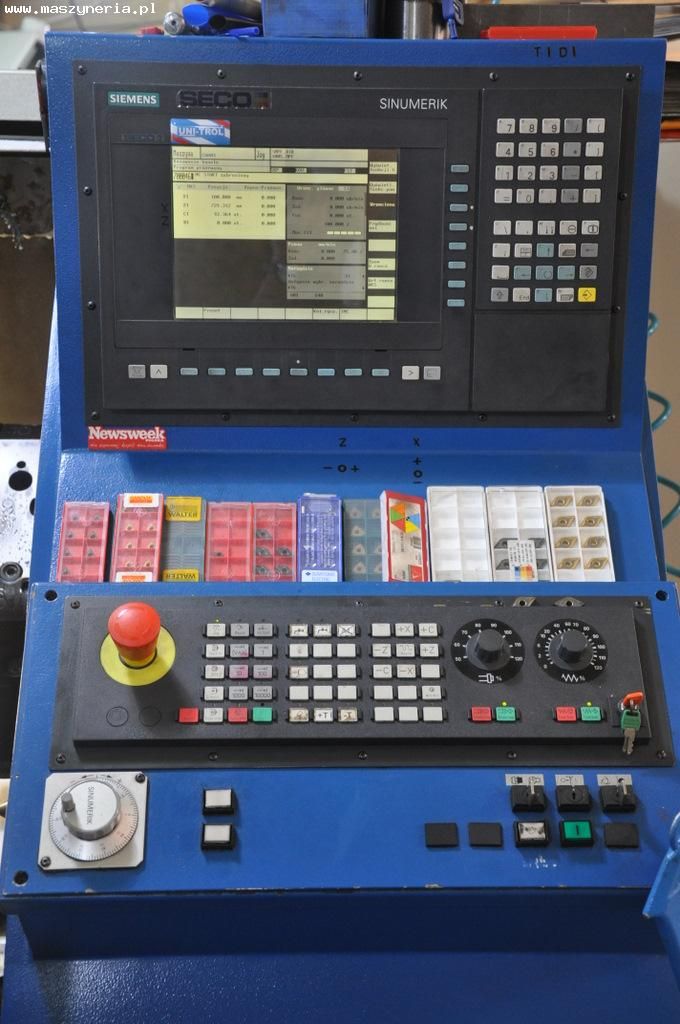

| SIEMENS Sinumerik 810 D | |
| CNC technology cycles | |
| Technical documentation | |
