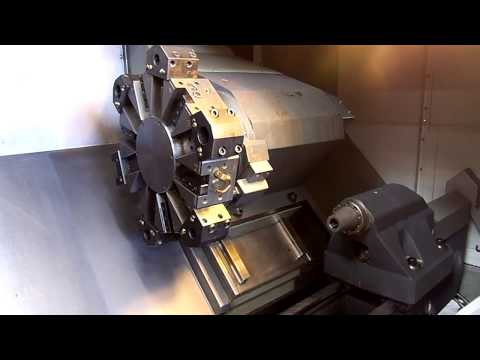

CNC Lathe HAAS ST-30
CNC Lathe HAAS ST-30 was manufactured by the machine manufacturer HAAS. Machine HAAS ST-30 was built in 2011 year.
General data | |
|---|---|
| Location | United States |
| region | California |
| Year of manufacture | 2011 |
| Warranty | Without warranty |
Technical parameters | |
|---|---|
| Maximum turning length (Z-axis) | 660.4 mm |
| Turning diameter over bed (max) | 806.5 mm |
| Turning diameter over cross slide (max) | 527.1 mm |
| Maximum travel length in the X-axis | 317.5 mm |
| Maximum feed rate in X-axis | 24 m/min |
| Maximum feed rate in Z-axis | 24 m/min |
| Maximum power of the main spindle | 29.8 kW |
| Diameter of the spindle bore | 88.9 mm |
| Total number of tools in the turret | 12 pcs |
| Length of the lathe | 4343.4 mm |
| Width of the lathe | 2286 mm |
| Height of the lathe | 2336.8 mm |
| Weight of the lathe | 6.5 t |
Equipment | |
|---|---|
| HAAS CNC CONTROL | |
| Bar feeder | |
| Chip transporter | |
| CE Declaration | |
