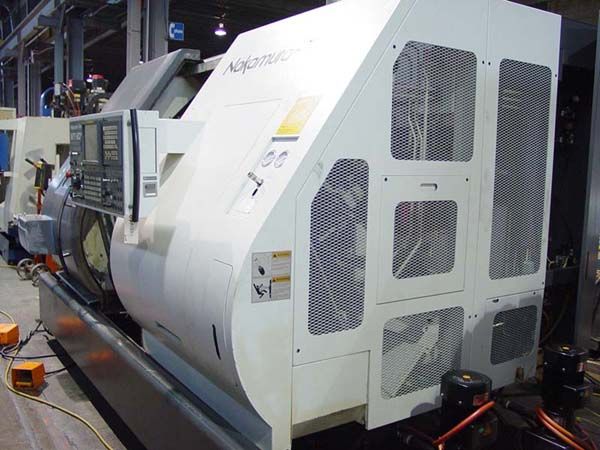

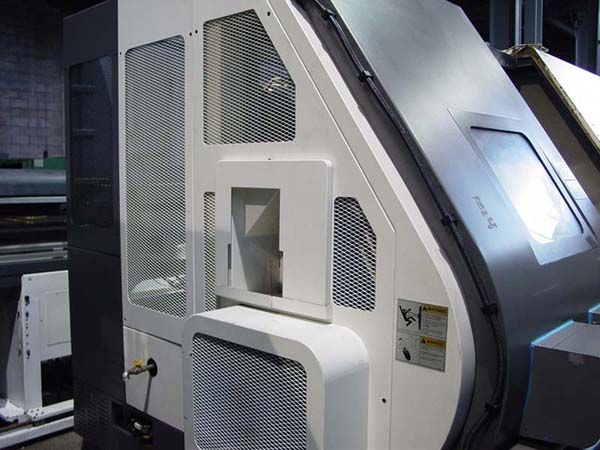

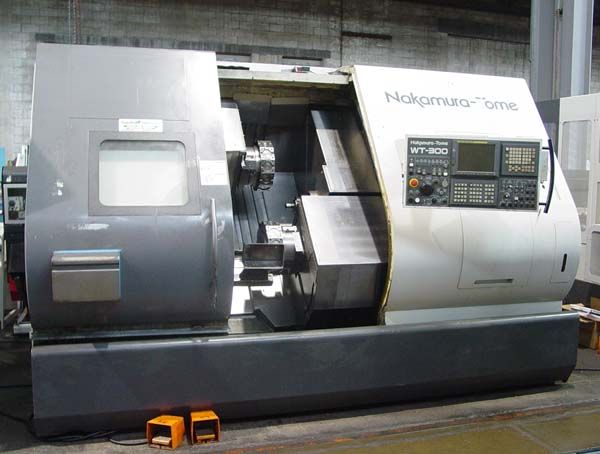

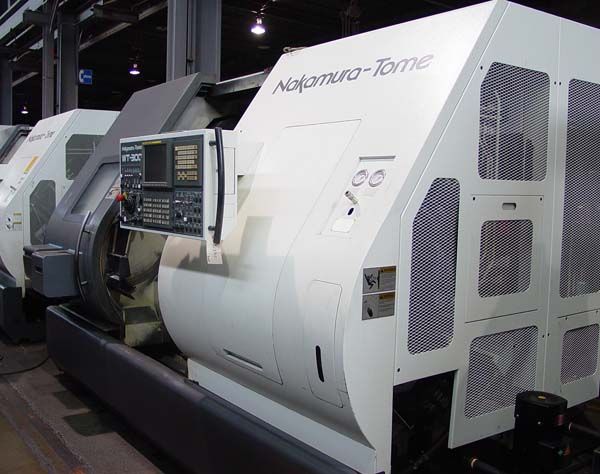

CNC Lathe NAKAMURA TOME WT-300 MMSY

Category CNC Lathes and Turning Centers NAKAMURA TOME ›
Manufacturer NAKAMURA TOME ›

ARCHIVED AD
CNC Lathe NAKAMURA TOME WT-300 MMSY was manufactured by the machine manufacturer NAKAMURA TOME. Machine NAKAMURA TOME WT-300 MMSY was built in 2005 year.

General data

Location United States
region Ohio
Year of manufacture 2005
Warranty Without warranty

Technical parameters

Maximum turning length (Z-axis) 779.8 mm
Turning diameter over bed (max) 309.9 mm
Turning diameter over cross slide (max) 269.2 mm
Maximum travel length in the X-axis 193 mm
Number of spindles 2 pcs
Maximum power of the main spindle 14.9 kW
Diameter of the spindle bore 78.7 mm
Minimum rotary speed of the main spindle 50 1/min
Maximum rotary speed of the main spindle 4500 1/min
Number of tool turrets 2 pcs
Total number of tools in the turret 12 pcs
Length of the lathe 4216.4 mm
Width of the lathe 2540 mm
Height of the lathe 2260.6 mm
Weight of the lathe 12.7 t

Equipment

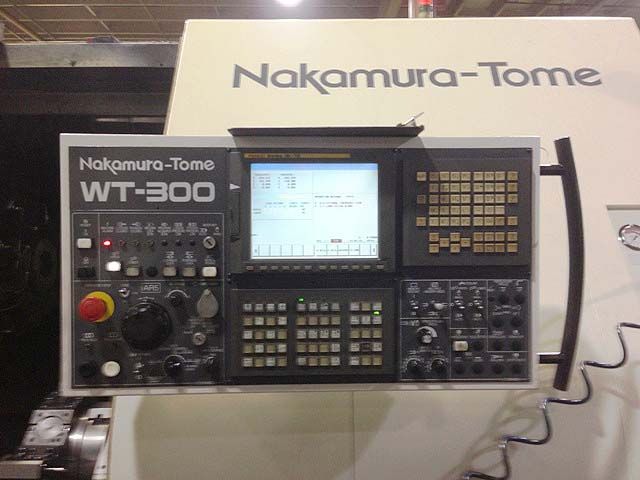

FANUC 18i-TB

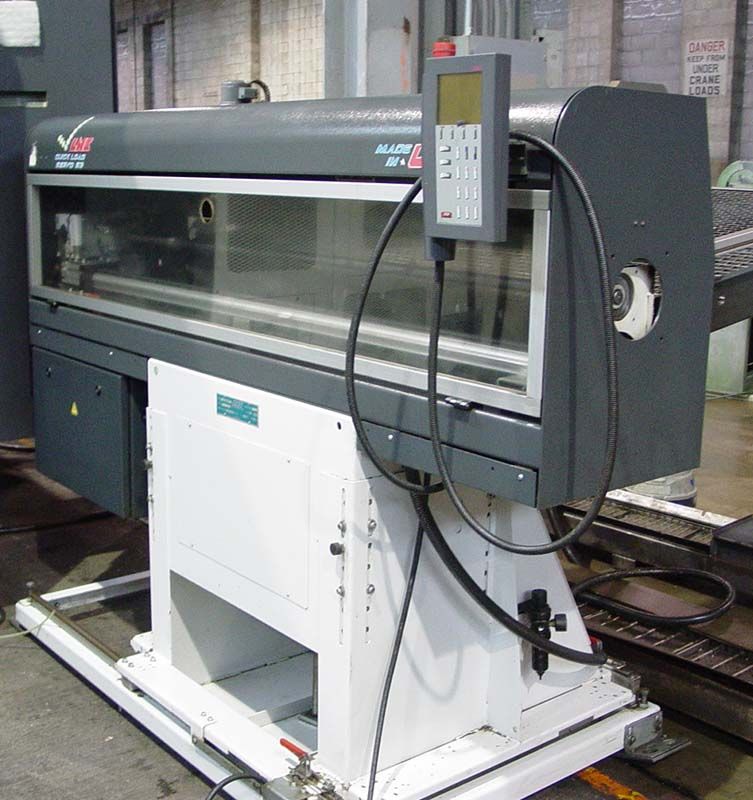

Bar feeder with bar magazine
Chip transporter
Subspindle
C-axis indexed
Y-axis
Liquid cooling system
