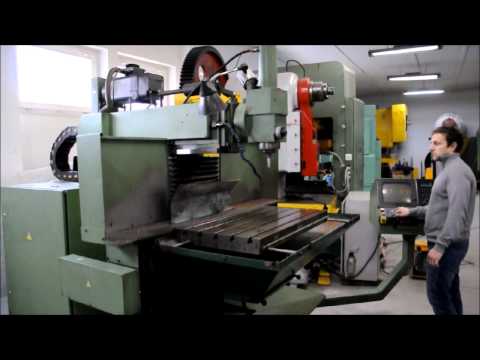

CNC Milling Machine Avia FNE 50 N TNC 360
CNC Milling Machine Avia FNE 50 N TNC 360 was manufactured by the machine manufacturer Avia. Machine Avia FNE 50 N TNC 360 was built in 1998 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 1998 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Loading | The seller organizes the loading - included in the price of the machine |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Length of the working table | 1000 mm |
| Width of the working table | 500 mm |
| Maximum table load (evenly distributed) | 500 kg |
| Power of the spindle drive | 7.5 kW |
| Minimum rotary speed of the vertical spindle | 25 1/min |
| Maximum rotary speed of the vertical spindle | 400 1/min |
| Travel length X-axis (mechanical feed) | 800 mm |
| Travel length Y-axis (mechanical feed) | 500 mm |
| Travel length Z-axis (mechanical feed) | 420 mm |
| Maximum feed rate in X-axis | 10000 mm/s |
| Maximum feed rate in Y-axis | 10000 mm/s |
| Maximum feed rate in Z-axis | 7000 mm/s |
| Number of T-slots in the table | 5 pcs |
Equipment | |
|---|---|
| Heidenhain TNC 360 | |
| Central lubrication | |
| Lighting | |
| Technical documentation | |
