CNC Milling Machine MILLTRONICS MB 10-A

Category CNC Milling Machines and Machining Centers MILLTRONICS ›
Manufacturer MILLTRONICS ›

ARCHIVED AD
CNC Milling Machine MILLTRONICS MB 10-A was manufactured by the machine manufacturer MILLTRONICS. Machine MILLTRONICS MB 10-A was built in 1998 year.

General data

Location United States
region Illinois
Year of manufacture 1998
Warranty Without warranty

Technical parameters

Length of the working table 1270 mm
Width of the working table 330.2 mm
Maximum table load (evenly distributed) 1360.8 kg
Power of the spindle drive 3.7 kW
Minimum rotary speed of the vertical spindle 60 1/min
Maximum rotary speed of the vertical spindle 4500 1/min
Travel length of the quill 152.4 mm
Travel length X-axis (mechanical feed) 812.8 mm
Travel length Y-axis (mechanical feed) 482.6 mm
Travel length Z-axis (mechanical feed) 571.5 mm
Machine height 2082.8 mm
Machine length 1828.8 mm
Machine width 1930.4 mm
Machine weight 2 t

Equipment

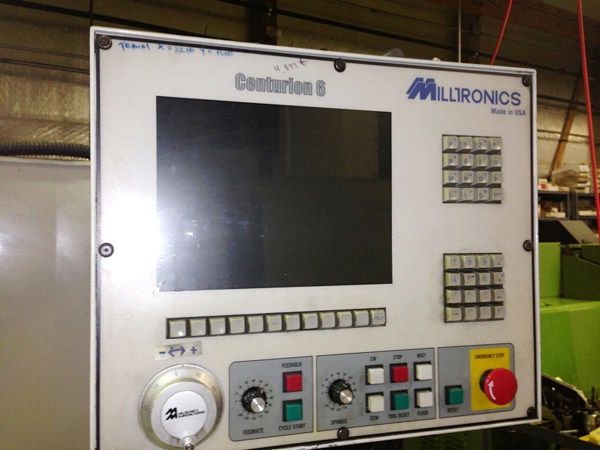

MILLTRONICS CENTURION VI
