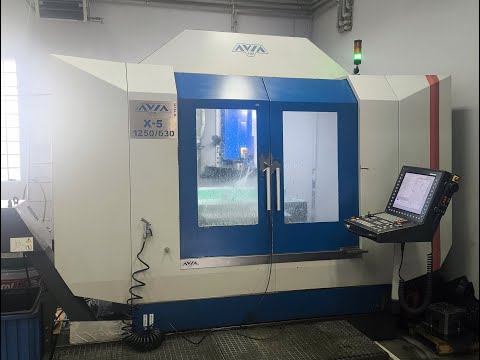

CNC Vertical Machining Center Avia X-5 1250/630

Net price	102180 USD
Local tax (VAT)	23 %
Company name	Maszyneria Sławomir Konieczko
Address	Wita Stwosza 18/13
City	Jelenia Góra
Post code	58-560
region	Dolnośląskie
Country	Poland
Telephone	+48 603510566
Category	CNC Milling Machines and Machining Centers Avia ›
Manufacturer	Avia ›

FREE AD

watch PDF ask print report abuse 2025-10-23

CNC Vertical Machining Center Avia X-5 1250/630 was manufactured by the machine manufacturer Avia. Machine Avia X-5 1250/630 was built in 2015 year.

General data
Location	Poland
region	Dolnośląskie
Year of manufacture	2015
Warranty	Without warranty
Technical condition	Very good
Payment	Before receipt
Transport	The buyer organizes the transport at his own cost

Technical parameters
Length of the working table	1500 mm
Width of the working table	710 mm
Maximum table load (evenly distributed)	1300 kg
Power of the spindle drive	35 kW
Number of CNC controlled axles	5 pcs
Number of tools in the magazine	40 pcs
Minimum rotary speed of the vertical spindle	50 1/min
Maximum rotary speed of the vertical spindle	18000 1/min
Minimum distance of the spindle from the table	90 mm
Maximum distance of the spindle from the table	710 mm
Travel length X-axis (mechanical feed)	1250 mm
Travel length Y-axis (mechanical feed)	700 mm
Travel length Z-axis (mechanical feed)	725 mm
Maximum feed rate in X-axis	500 mm/s
Maximum feed rate in Y-axis	333.3 mm/s
Maximum feed rate in Z-axis	416.7 mm/s
Number of T-slots in the table	5 pcs
Machine height	3360 mm
Machine length	3500 mm
Machine width	4000 mm
Machine weight	10 t
