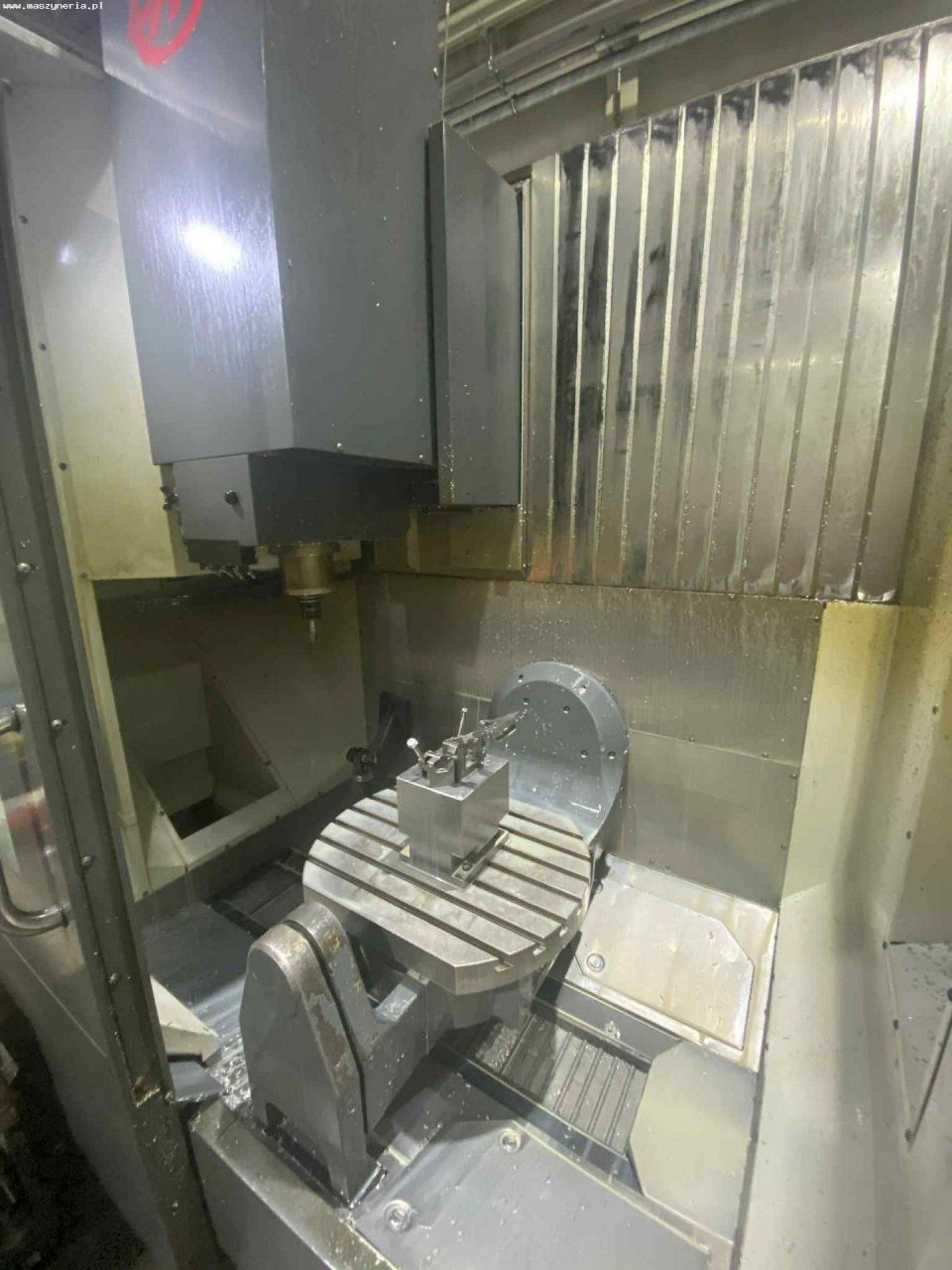

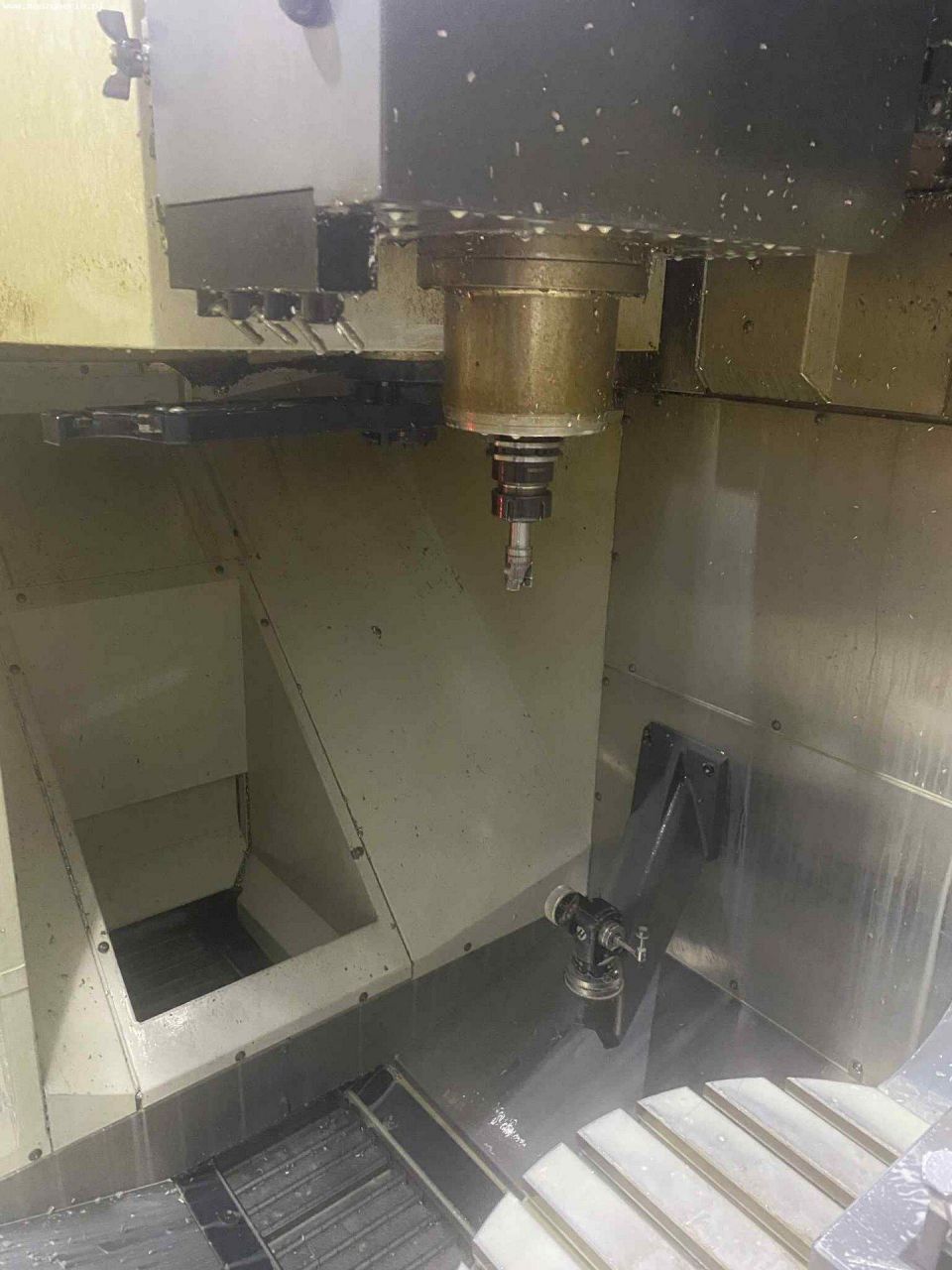

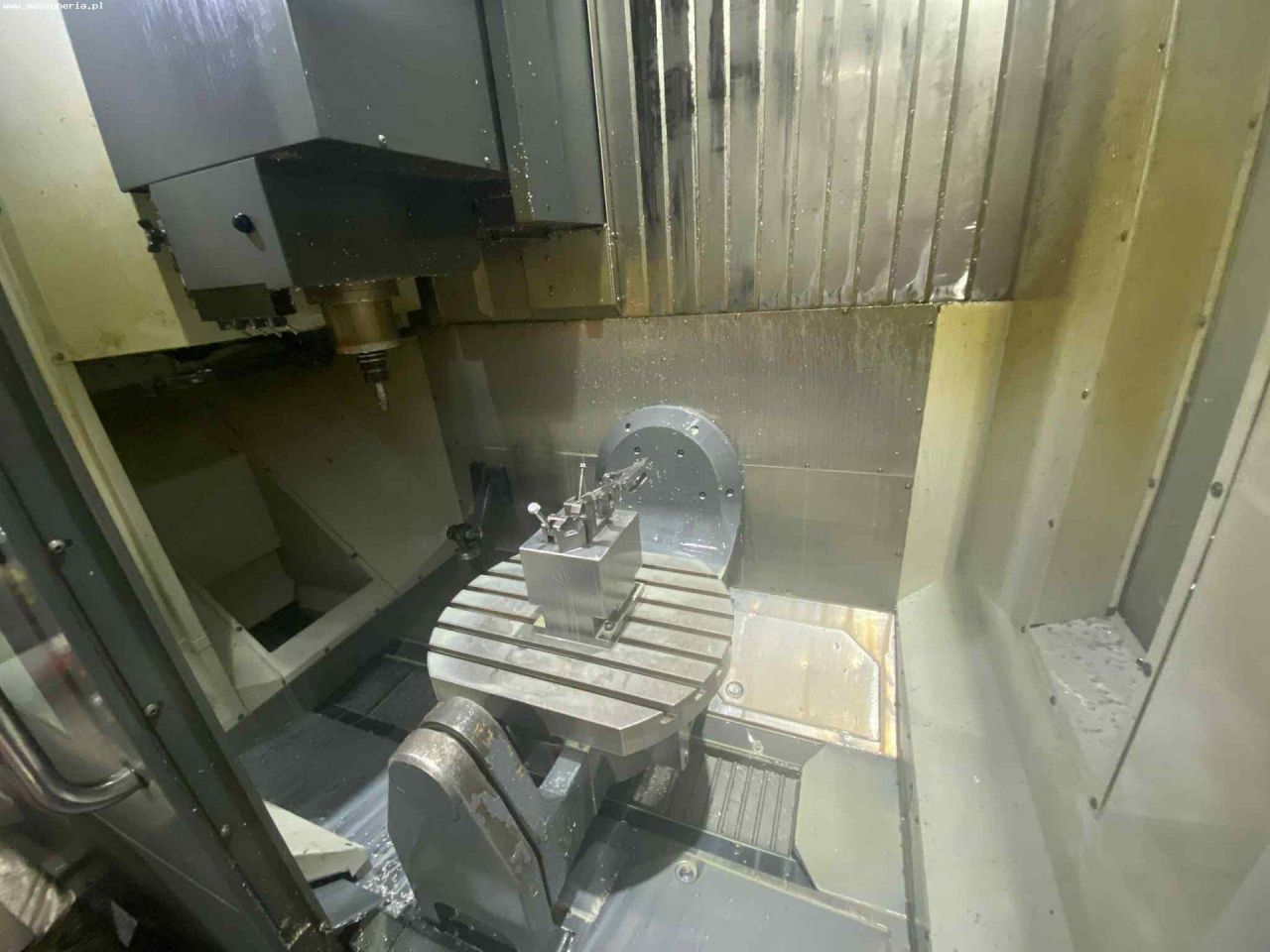

CNC Vertical Machining Center HAAS UMC 750
| Net price | 73569 USD |
| Local tax (VAT) | 23 % |
| Company name |
Maszyneria
Sławomir Konieczko |
| Address | Wita Stwosza 18/13 |
| City | Jelenia Góra |
| Post code | 58-560 |
| region | Dolnośląskie |
| Country | Poland |
| Telephone | +48 603510566 |
| Category | CNC Milling Machines and Machining Centers HAAS › |
| Manufacturer | HAAS › |
CNC Vertical Machining Center HAAS UMC 750 was manufactured by the machine manufacturer HAAS. Machine HAAS UMC 750 was built in 2015 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 2015 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
Technical parameters | |
|---|---|
| Maximum table load (evenly distributed) | 300 kg |
| Power of the spindle drive | 22.4 kW |
| Number of CNC controlled axles | 5 pcs |
| Number of tools in the magazine | 31 pcs |
| Maximum rotary speed of the vertical spindle | 8100 1/min |
| Minimum distance of the spindle from the table | 102 mm |
| Maximum distance of the spindle from the table | 610 mm |
| Travel length X-axis (mechanical feed) | 762 mm |
| Travel length Y-axis (mechanical feed) | 508 mm |
| Travel length Z-axis (mechanical feed) | 508 mm |
| Maximum feed rate in X-axis | 381.7 mm/s |
| Maximum feed rate in Y-axis | 381.7 mm/s |
| Maximum feed rate in Z-axis | 381.7 mm/s |
| Number of T-slots in the table | 7 pcs |
| Machine weight | 7 t |
Equipment | |
|---|---|

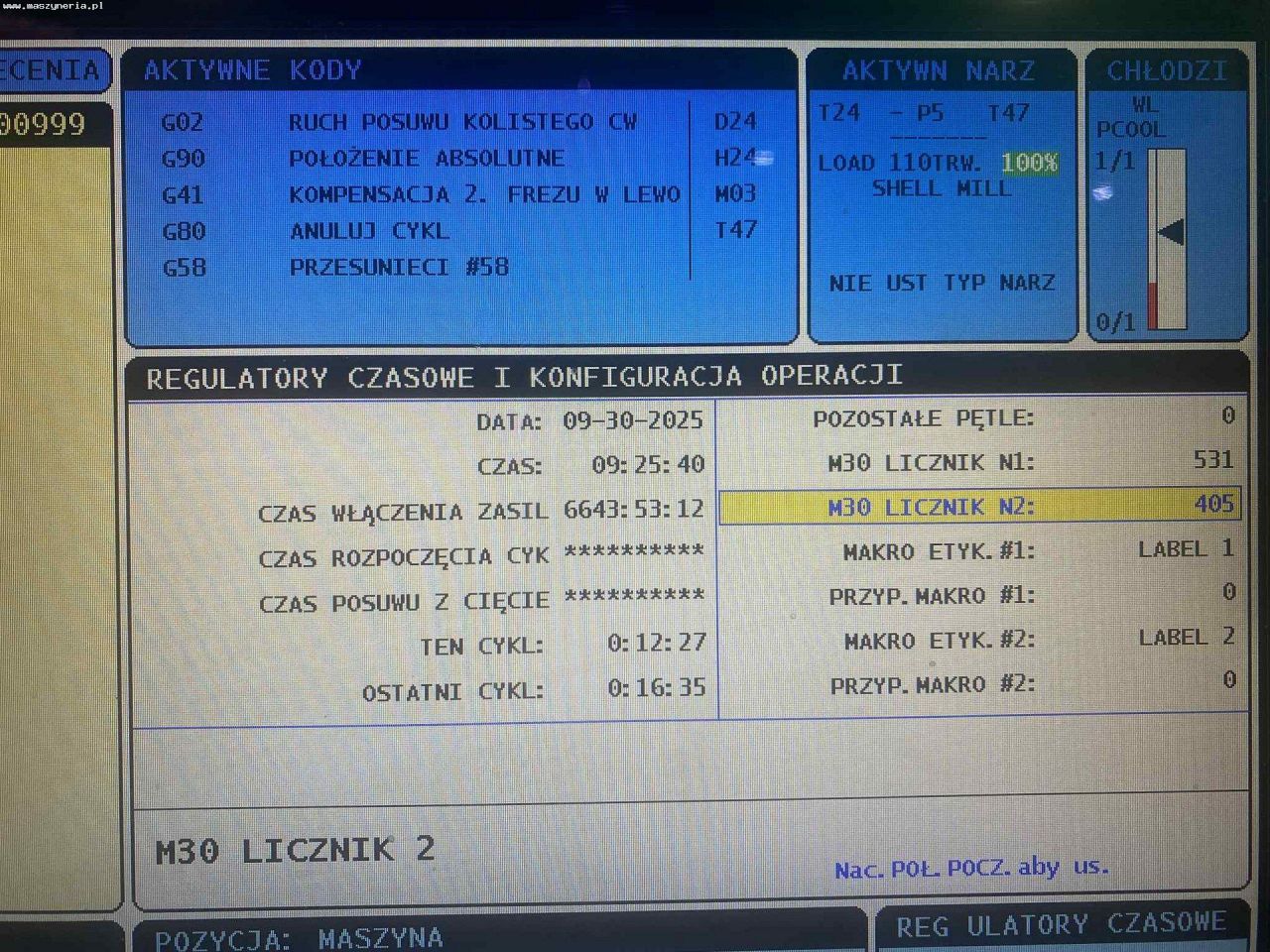

| HAAS CNC | |

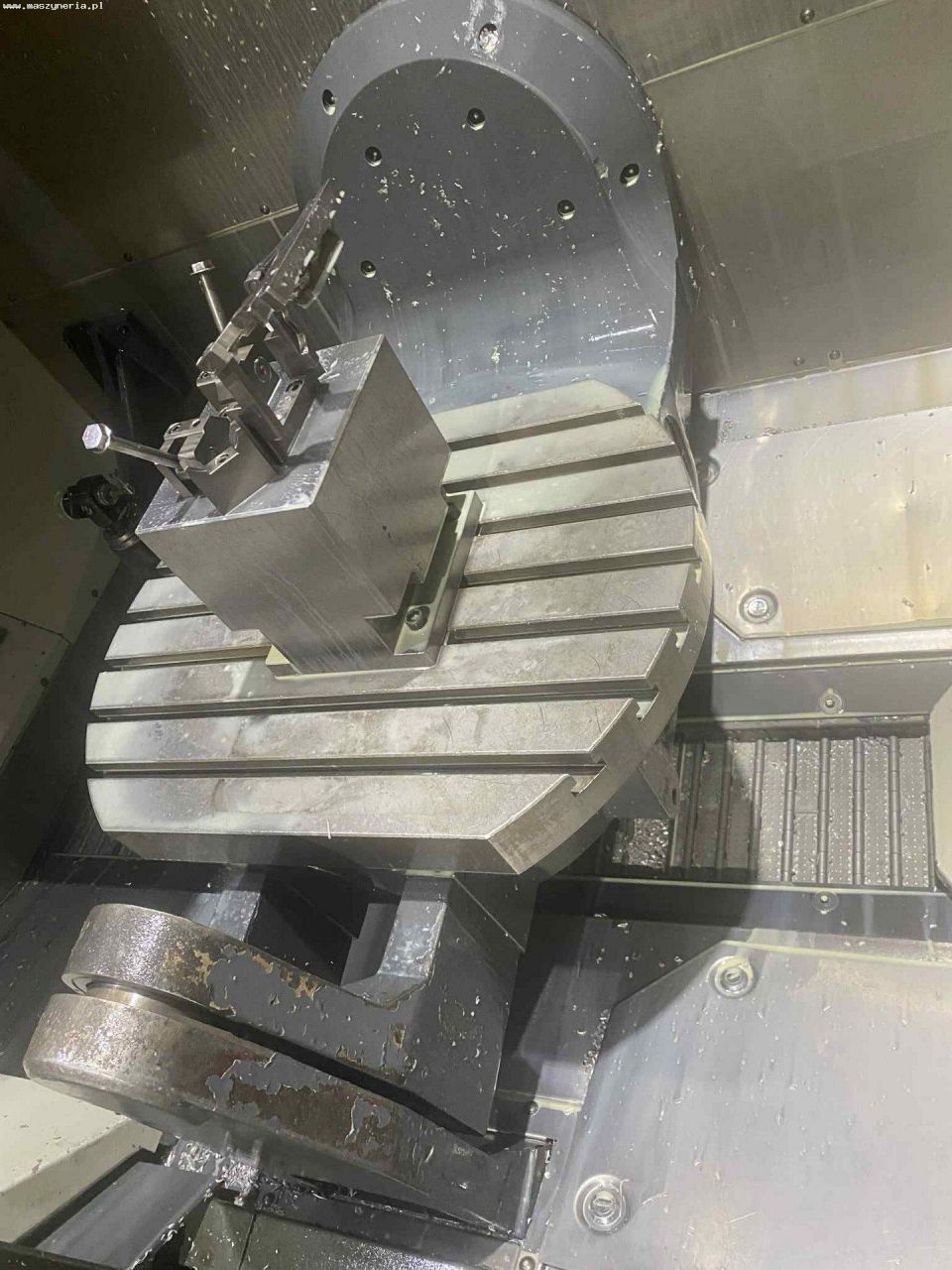

| Tilting working table | |
| Rotary working table | |
