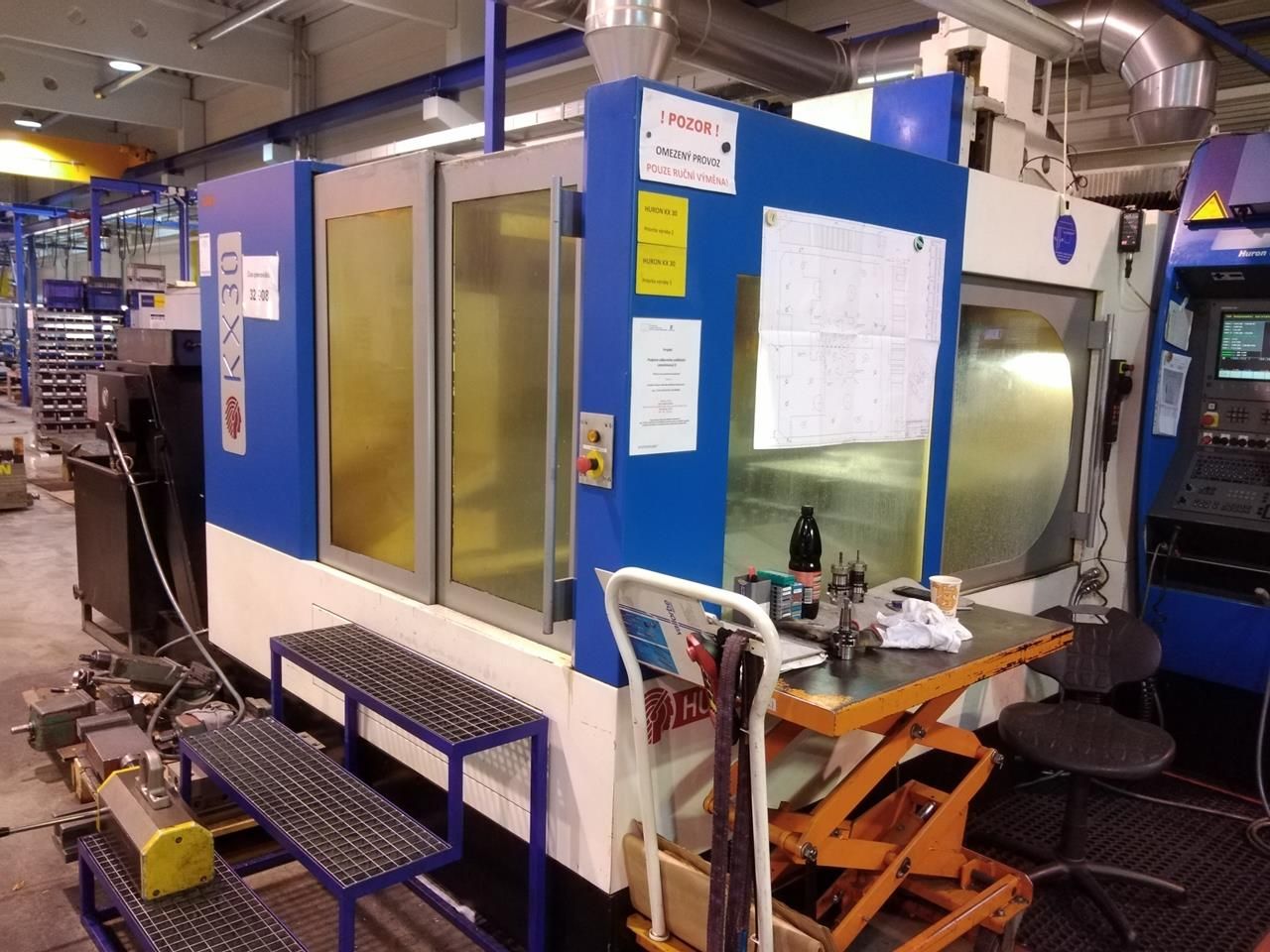

CNC Vertical Machining Center HURON KX30
CNC Vertical Machining Center HURON KX30 was manufactured by the machine manufacturer HURON. Machine HURON KX30 was built in 2005 year.
General data | |
|---|---|
| Location | Czech Republic |
| Year of manufacture | 2005 |
| Warranty | Without warranty |
| Stock number | 5203 |
Technical parameters | |
|---|---|
| Length of the working table | 2000 mm |
| Width of the working table | 1100 mm |
| Maximum table load (evenly distributed) | 2500 kg |
| Number of tools in the magazine | 20 pcs |
| Maximum rotary speed of the vertical spindle | 18000 1/min |
| Travel length X-axis (mechanical feed) | 1800 mm |
| Travel length Y-axis (mechanical feed) | 1000 mm |
| Travel length Z-axis (mechanical feed) | 550 mm |
| Machine height | 3500 mm |
| Machine length | 5000 mm |
| Machine width | 2500 mm |
| Machine weight | 17 t |
Equipment | |
|---|---|
| no data | |
