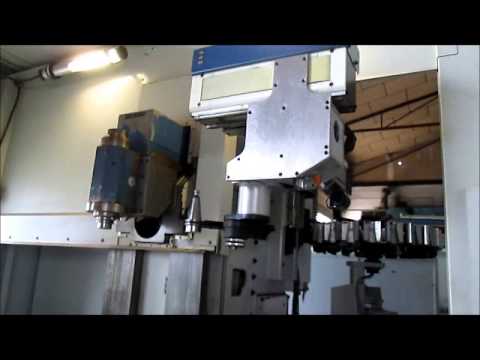

CNC Vertical Machining Center KORRADI VH 1000 CNC

Category CNC Milling Machines and Machining Centers KORRADI ›
Manufacturer KORRADI ›

ARCHIVED AD
CNC Vertical Machining Center KORRADI VH 1000 CNC was manufactured by the machine manufacturer KORRADI. Machine KORRADI VH 1000 CNC was built in 1997 year.

General data

Location Germany
region Hessen
Year of manufacture 1997
Warranty Without warranty

Technical parameters

Length of the working table 1300 mm
Width of the working table 700 mm
Power of the spindle drive 15 kW
Number of CNC controlled axles 5 pcs
Number of tools in the magazine 20 pcs
Minimum rotary speed of the vertical spindle 40 1/min
Maximum rotary speed of the vertical spindle 6000 1/min
Travel length X-axis (mechanical feed) 1000 mm
Travel length Y-axis (mechanical feed) 600 mm
Travel length Z-axis (mechanical feed) 600 mm
Maximum feed rate in X-axis 166.7 mm/s
Maximum feed rate in Y-axis 166.7 mm/s
Maximum feed rate in Z-axis 166.7 mm/s
Total power demand 28 kW
Number of T-slots in the table 7 pcs
Machine weight 7 t

Equipment

HEIDENHAIN TNC 426 CB
Electronic wheel for manual operation
Rotary working table
Liquid cooling system
Technical documentation
