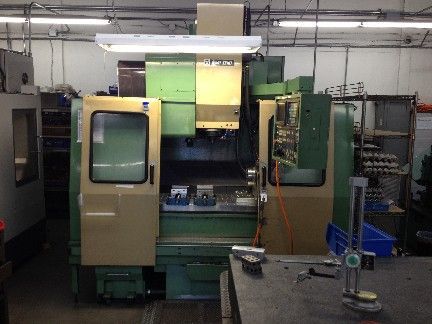

CNC Vertical Machining Center MORI SEIKI MV-40B

Category CNC Milling Machines and Machining Centers MORI SEIKI ›
Manufacturer MORI SEIKI ›

ARCHIVED AD
CNC Vertical Machining Center MORI SEIKI MV-40B was manufactured by the machine manufacturer MORI SEIKI. Machine MORI SEIKI MV-40B was built in 1991 year.

General data

Location United States
region California
Year of manufacture 1991
Warranty Without warranty

Technical parameters

Length of the working table 1201.4 mm
Width of the working table 459.7 mm
Maximum table load (evenly distributed) 698.5 kg
Power of the spindle drive 7.5 kW
Number of tools in the magazine 20 pcs
Maximum rotary speed of the vertical spindle 8000 1/min
Minimum distance of the spindle from the table 149.9 mm
Maximum distance of the spindle from the table 609.6 mm
Travel length X-axis (mechanical feed) 800.1 mm
Travel length Y-axis (mechanical feed) 416.6 mm
Travel length Z-axis (mechanical feed) 510.5 mm
Maximum feed rate in X-axis 333.2 mm/s
Maximum feed rate in Y-axis 333.2 mm/s
Maximum feed rate in Z-axis 333.2 mm/s
Machine weight 6.1 t

Equipment

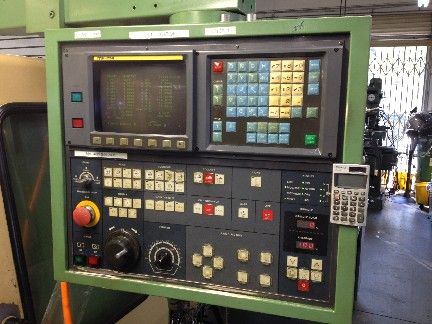

FANUC OM
Rotary working table
Liquid cooling system
