CNC Vertical Machining Center SHARNOA HPM 44

Category CNC Milling Machines and Machining Centers SHARNOA ›
Manufacturer SHARNOA ›

ARCHIVED AD
CNC Vertical Machining Center SHARNOA HPM 44 was manufactured by the machine manufacturer SHARNOA. Machine SHARNOA HPM 44 was built in 2000 year.

General data

Location United States
region Illinois
Year of manufacture 2000
Warranty Without warranty

Technical parameters

Length of the working table 1397 mm
Width of the working table 546.1 mm
Power of the spindle drive 27 kW

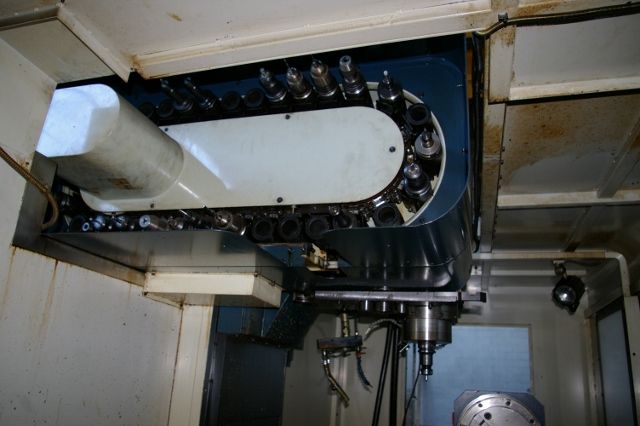

Number of tools in the magazine 32 pcs
Maximum rotary speed of the vertical spindle 20000 1/min
Minimum distance of the spindle from the table 50.8 mm
Maximum distance of the spindle from the table 685.8 mm
Travel length X-axis (mechanical feed) 1104.9 mm
Travel length Y-axis (mechanical feed) 596.9 mm
Travel length Z-axis (mechanical feed) 635 mm
Machine height 2590.8 mm
Machine length 2768.6 mm
Machine width 3378.2 mm
Machine weight 8.2 t

Equipment

TIGER 7

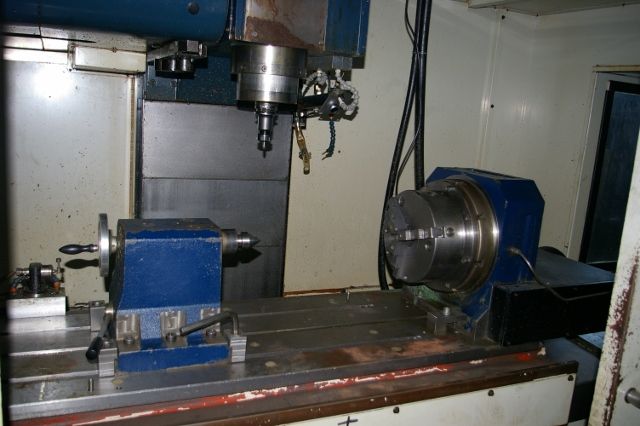

Rotary working table
Tailstock

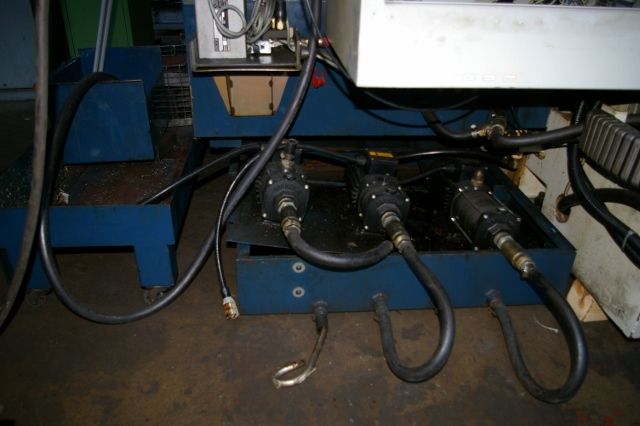

Liquid cooling system
Lighting
