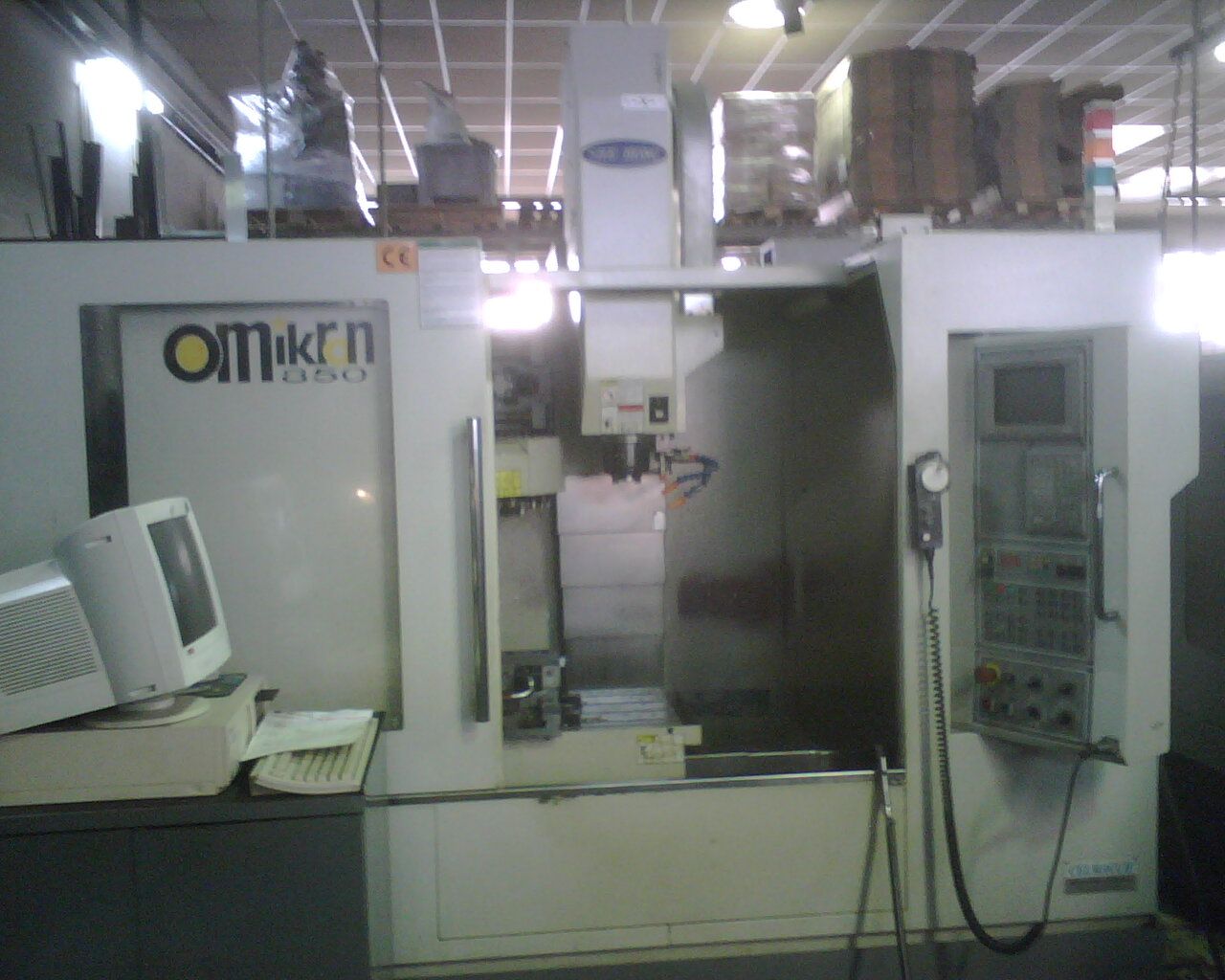

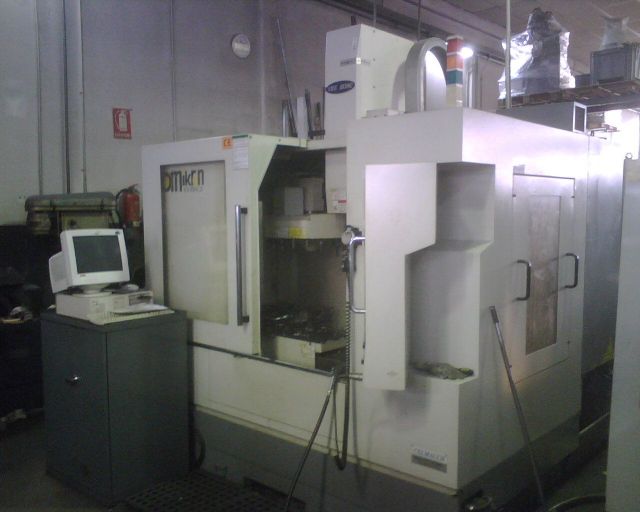

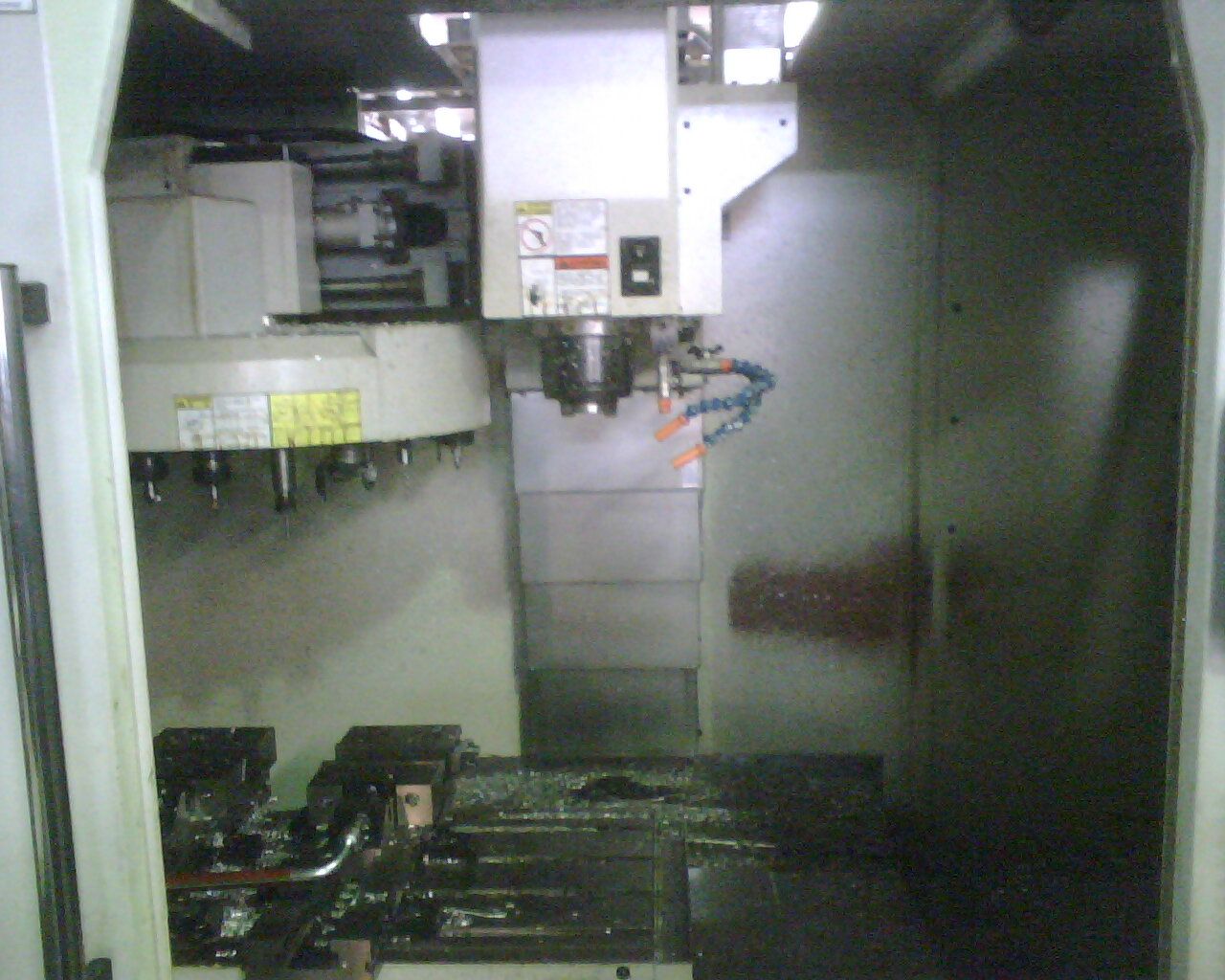

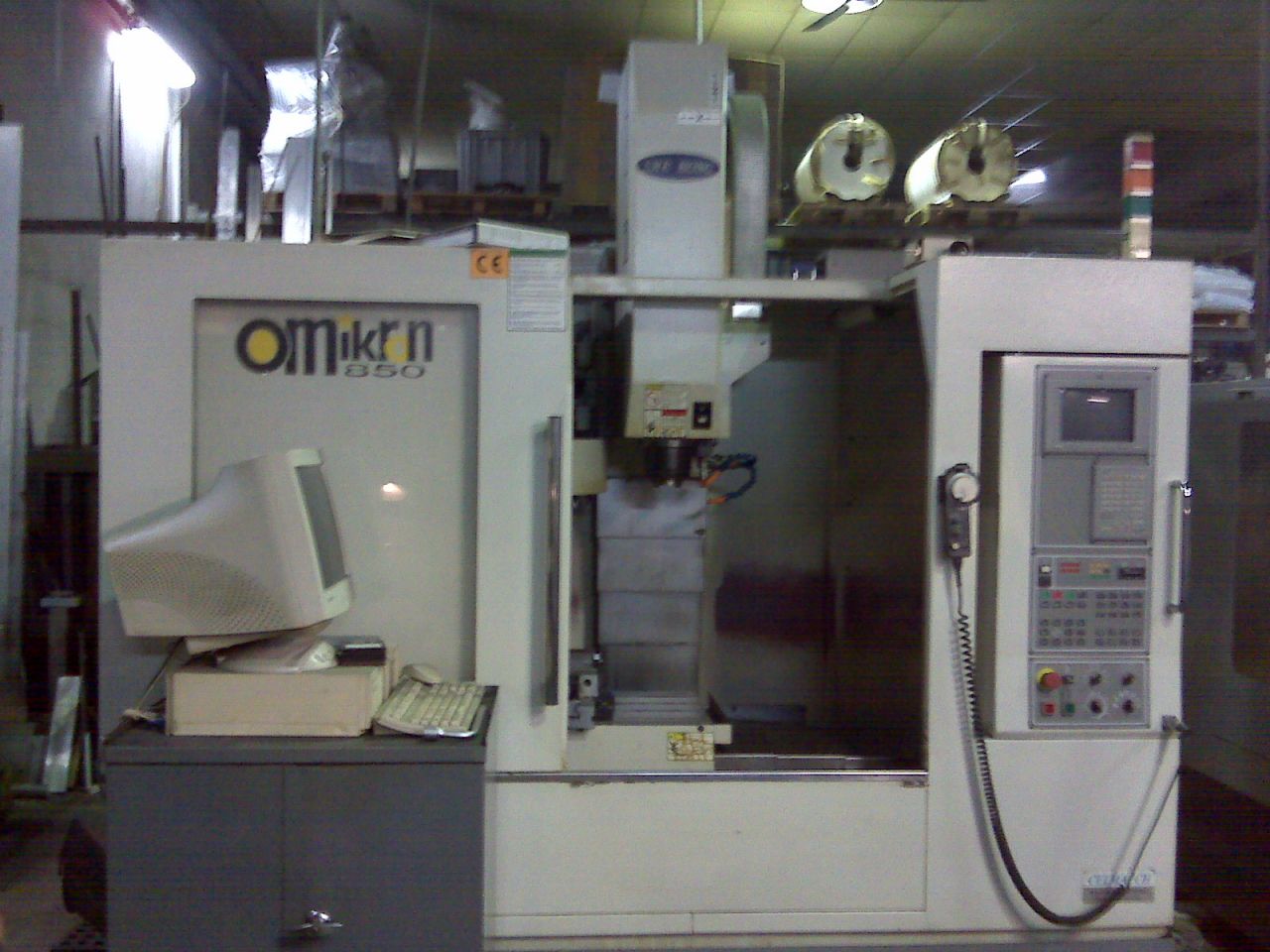

CNC Vertical Machining Center SHE HONG OMIKRON 850 SPH
CNC Vertical Machining Center SHE HONG OMIKRON 850 SPH was manufactured by the machine manufacturer SHE HONG. Machine SHE HONG OMIKRON 850 SPH was built in 2002 year.
General data | |
|---|---|
| Location | Italy |
| Year of manufacture | 2002 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Loading | The seller organizes the loading - paid separately |
| Payment | Before receipt |
| Transport | The seller organizes the transport at a surcharge |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Length of the working table | 1000 mm |
| Width of the working table | 500 mm |
| Number of CNC controlled axles | 3 pcs |
| Number of synchronous axles | 3 pcs |
| Number of tools in the magazine | 20 pcs |
| Maximum rotary speed of the vertical spindle | 8000 1/min |
| Travel length X-axis (mechanical feed) | 800 mm |
| Travel length Y-axis (mechanical feed) | 510 mm |
| Travel length Z-axis (mechanical feed) | 500 mm |
| Machine height | 2800 mm |
| Machine length | 2400 mm |
| Machine width | 2400 mm |
| Machine weight | 5400 t |
Equipment | |
|---|---|

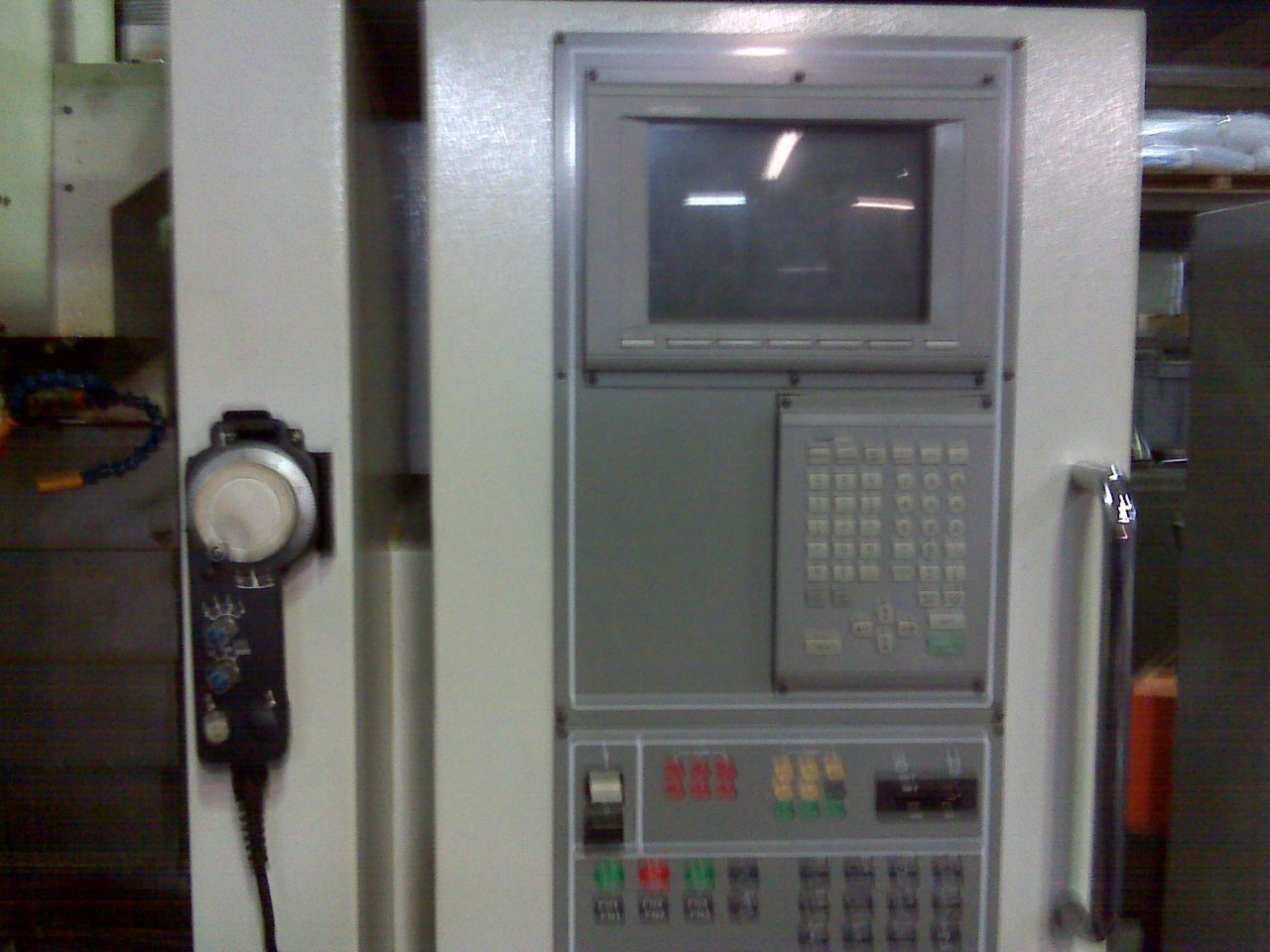

| MITSUBISHI MELDAS 65 | |
| Electronic wheel for manual operation | |
| Smooth adjustment of the vertical spindle speed | |
| Central lubrication | |
| Liquid cooling system | |
| Lighting | |
| Technical documentation | |
| CE Declaration | |
