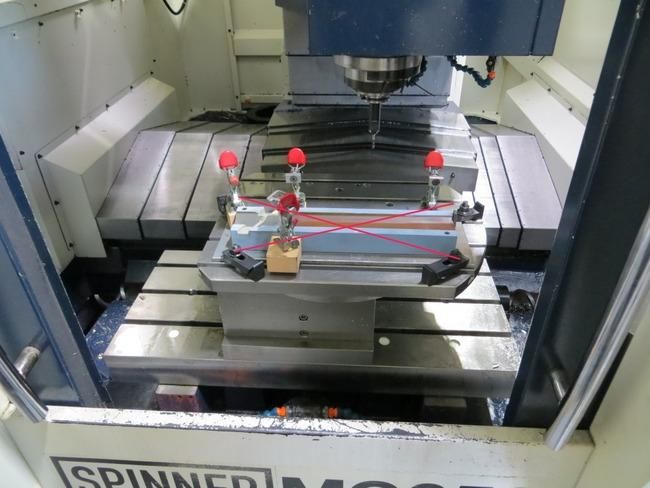

CNC Vertical Machining Center SPINNER MC 650

Category CNC Milling Machines and Machining Centers SPINNER ›
Manufacturer SPINNER ›

ARCHIVED AD
CNC Vertical Machining Center SPINNER MC 650 was manufactured by the machine manufacturer SPINNER. Machine SPINNER MC 650 was built in 2003 year.

General data

Location Germany
region Baden-Württemberg
Year of manufacture 2003
Warranty Without warranty

Technical parameters

Number of CNC controlled axles 5 pcs
Number of tools in the magazine 32 pcs
Maximum rotary speed of the vertical spindle 8000 1/min
Travel length X-axis (mechanical feed) 650 mm
Travel length Y-axis (mechanical feed) 450 mm
Travel length Z-axis (mechanical feed) 460 mm
Maximum feed rate in X-axis 533.3 mm/s
Maximum feed rate in Y-axis 533.3 mm/s
Maximum feed rate in Z-axis 400 mm/s
Machine weight 9.5 t

Equipment

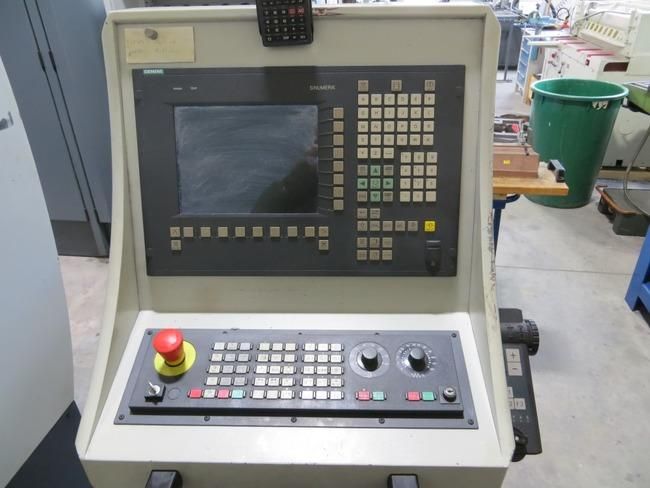

SIEMENS SINUMERIK 810 D SHOP
