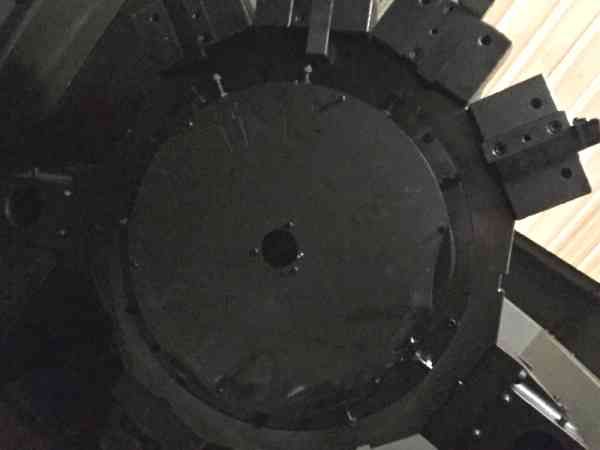

CNC Vertical Turret Lathe DOOSAN PUMA VT-1100

Category CNC Lathes and Turning Centers DOOSAN ›
Manufacturer DOOSAN ›

ARCHIVED AD
CNC Vertical Turret Lathe DOOSAN PUMA VT-1100 was manufactured by the machine manufacturer DOOSAN. Machine DOOSAN PUMA VT-1100 was built in 2008 year.

General data

Location United States
region New York
Year of manufacture 2008
Warranty Without warranty
Stock number 60808

Technical parameters

Diameter of the table 1016 mm
Maximum turning diameter 1270 mm
Maximum height of the workpiece 1000 mm
Minimum table rotary speed 5 1/min
Maximum table rotary speed 850 1/min
Maximum table load 1999.9 kg
Maximum feed rate of the transverse beam 20 m/min
Maximum feed rate of the carriage over the transverse beam 20 m/min
Total number of tools in the turret 12 pcs
Length of the lathe 2844.8 mm
Width of the lathe 3302 mm
Height of the lathe 4013.2 mm
Weight of the lathe 22 t

Equipment

FANUC 21i-TB
Chip transporter
Liquid cooling system
