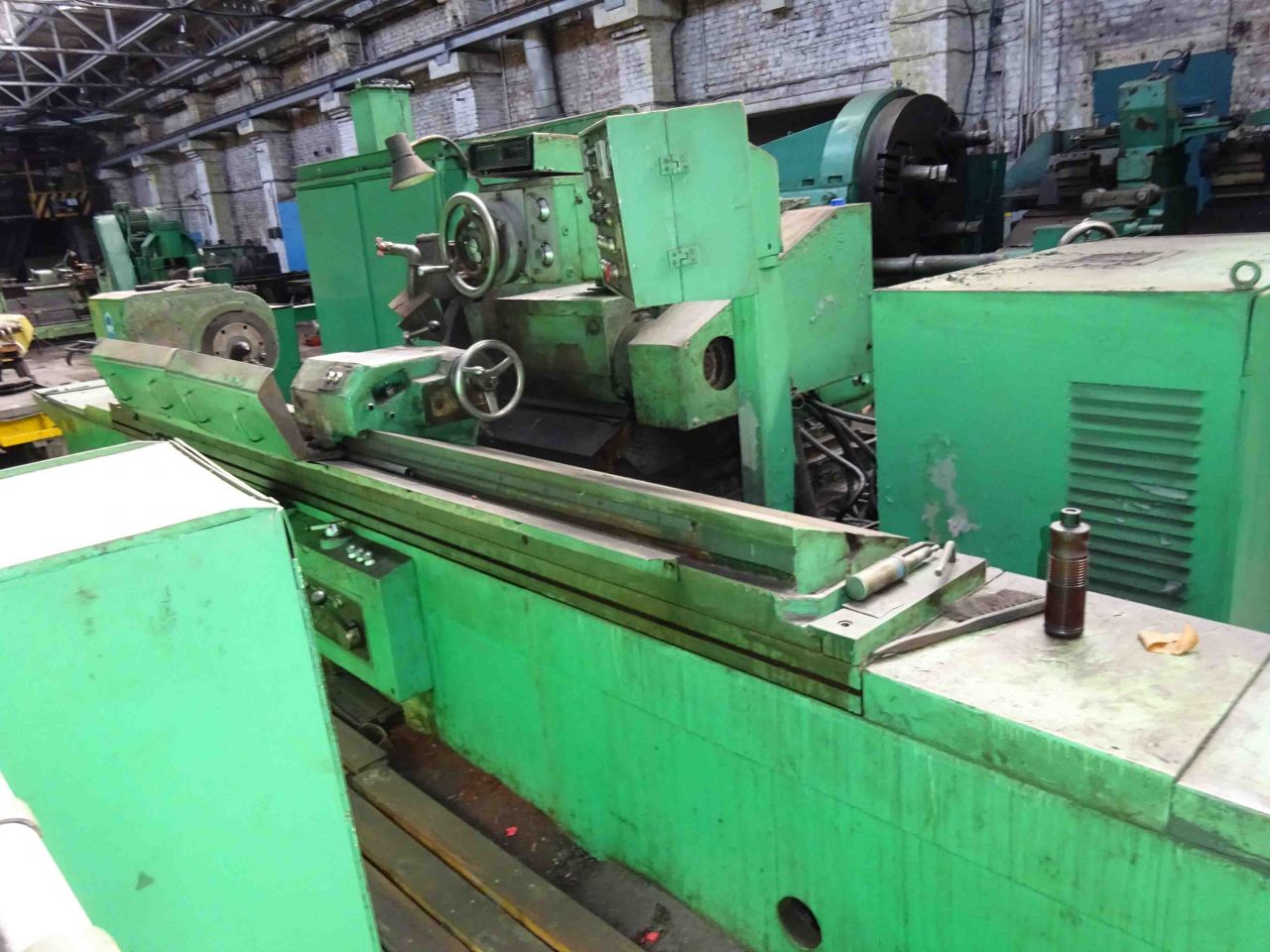

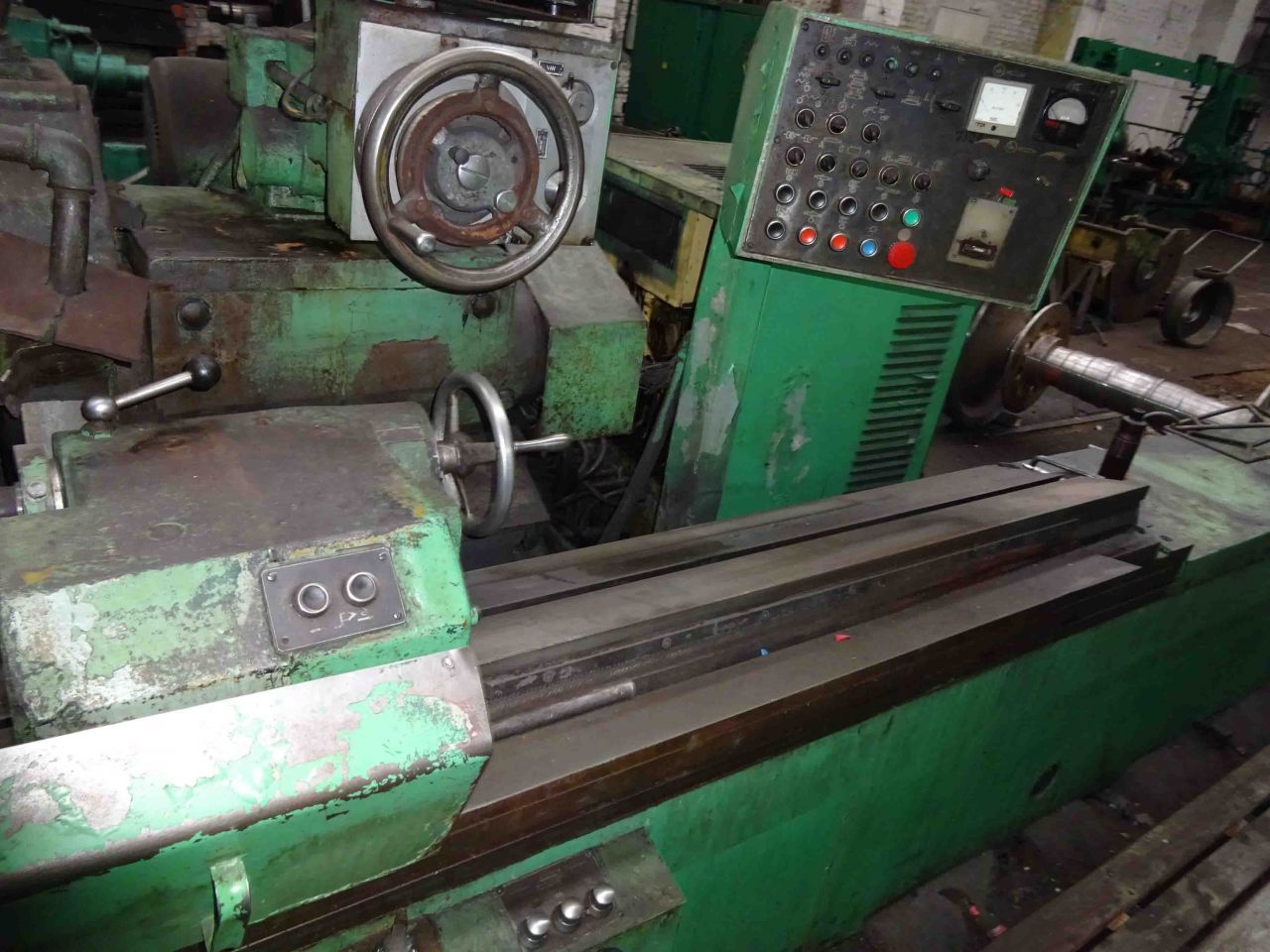

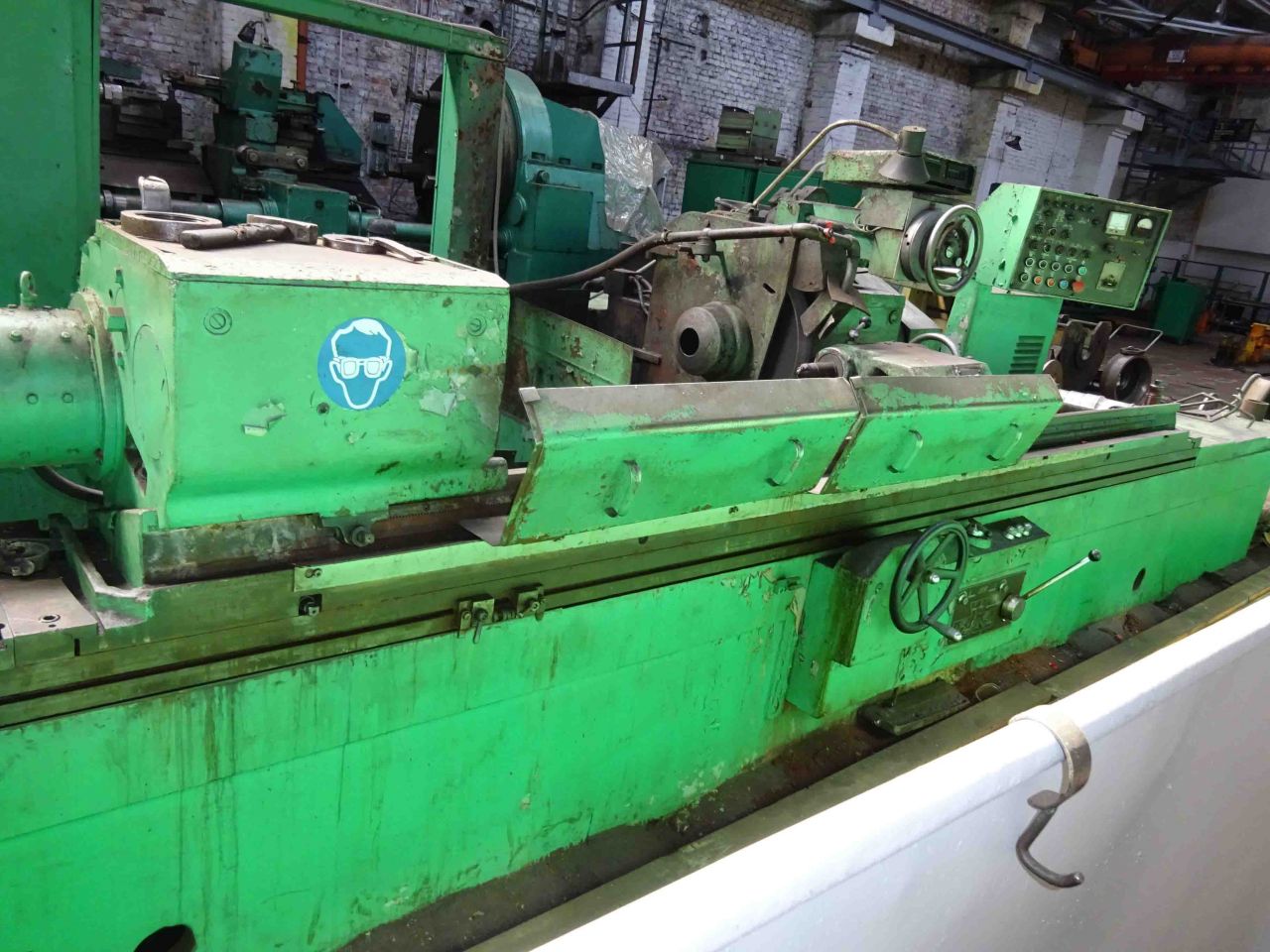

Cylindrical Grinder Stanko 3M175 (400x2800)

Category Grinding Machines Stanko ›
Manufacturer Stanko ›

ARCHIVED AD
Cylindrical Grinder Stanko 3M175 (400x2800) was manufactured by the machine manufacturer Stanko. Machine Stanko 3M175 (400x2800) was built in 1985 year.

General data

Location Latvia
Year of manufacture 1985
Warranty Without warranty
Technical condition Good
Loading The seller organizes the loading - included in the price of the machine
Payment Before receipt
Transport The seller organizes the transport at a surcharge
Status A test can be performed

Technical parameters

Maximum length of the grinding (shaft) 2520 mm
Maximum diameter of the grinding (shaft) 400 mm
Center height 210 mm
Maximum weight of the shaft between the centers 1000 kg
Maximum rotary speed the grinding wheel spindle 1270 1/min
Maximum diameter of a grinding wheel 750 mm
Total power demand 26 kW
Machine height 2135 mm
Machine length 8310 mm
Machine width 3690 mm
Machine weight 13.9 t

Equipment

Technical documentation
