Horizontal Boring Machine Alesatrice 130 CNC Doppio Pallet 130 cnc

Category Boring Machines Alesatrice 130 CNC Doppio Pallet ›
Manufacturer Alesatrice 130 CNC Doppio Pallet ›

ARCHIVED AD
Horizontal Boring Machine Alesatrice 130 CNC Doppio Pallet 130 cnc was manufactured by the machine manufacturer Alesatrice 130 CNC Doppio Pallet. Machine Alesatrice 130 CNC Doppio Pallet 130 cnc was built in 1995 year.

General data

Location Italy
Year of manufacture 1995
Warranty Without warranty
Technical condition Good

Technical parameters

Spindle bore 130 mm
Length of the working table 1650 mm
Width of the working table 1200 mm
Maximum table load (evenly distributed) 10000 kg
Power of the spindle drive 55 kW
Maximum rotary speed of the spindle 3000 1/min
Maximum headstock travel 800 mm
Maximum travel length of the spindle 800 mm
Travel length X-axis (mechanical feed) 2000 mm
Travel length Y-axis (mechanical feed) 1800 mm
Travel length Z-axis (mechanical feed) 2000 mm

Equipment

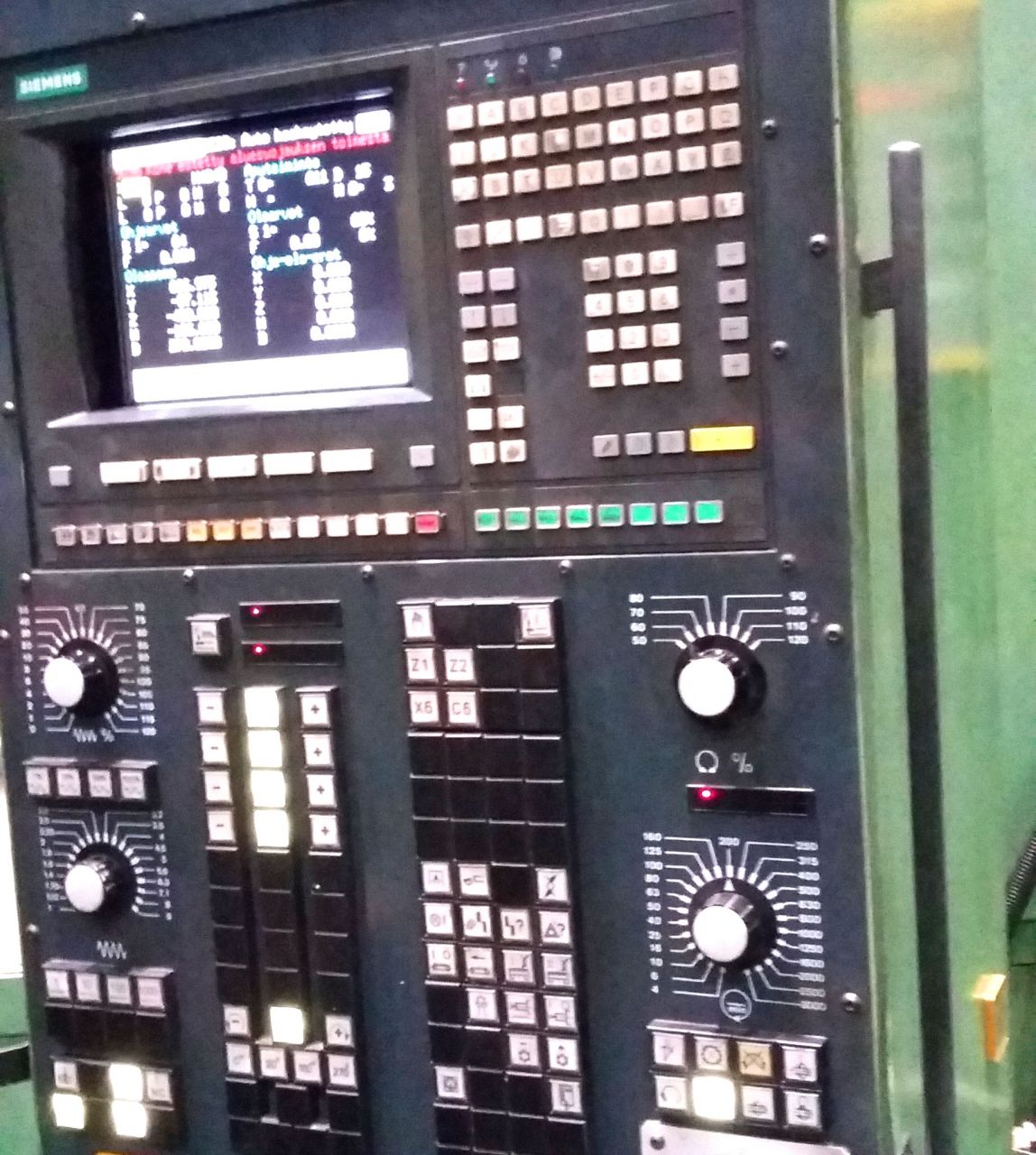

CNC control
