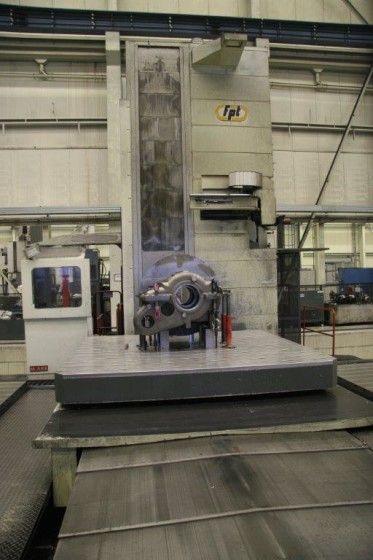

Horizontal Boring Machine FPT M-ARX M 120

Category Boring Machines FPT ›
Manufacturer FPT ›

ARCHIVED AD
Horizontal Boring Machine FPT M-ARX M 120 was manufactured by the machine manufacturer FPT. Machine FPT M-ARX M 120 was built in 2005 year.

General data

Location United States
region Georgia
Year of manufacture 2005
Warranty Without warranty
Stock number 10237

Technical parameters

Length of the working table 2999.7 mm
Width of the working table 2999.7 mm
Maximum table load (evenly distributed) 59999.8 kg
Power of the spindle drive 51 kW
Minimum rotary speed of the spindle 260 1/min
Maximum rotary speed of the spindle 3000 1/min
Travel length X-axis (mechanical feed) 11999 mm
Travel length Y-axis (mechanical feed) 4000.5 mm
Travel length Z-axis (mechanical feed) 1501.1 mm
Maximum feed rate in X-axis 250 mm/s
Maximum feed rate in Y-axis 250 mm/s
Maximum feed rate in Z-axis 250 mm/s

Equipment

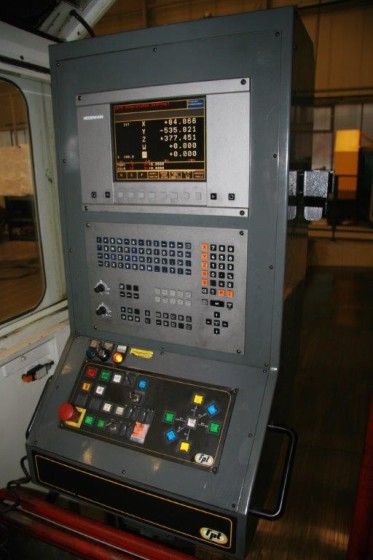

HEIDENHAIN TNC 430 I SP
CNC control

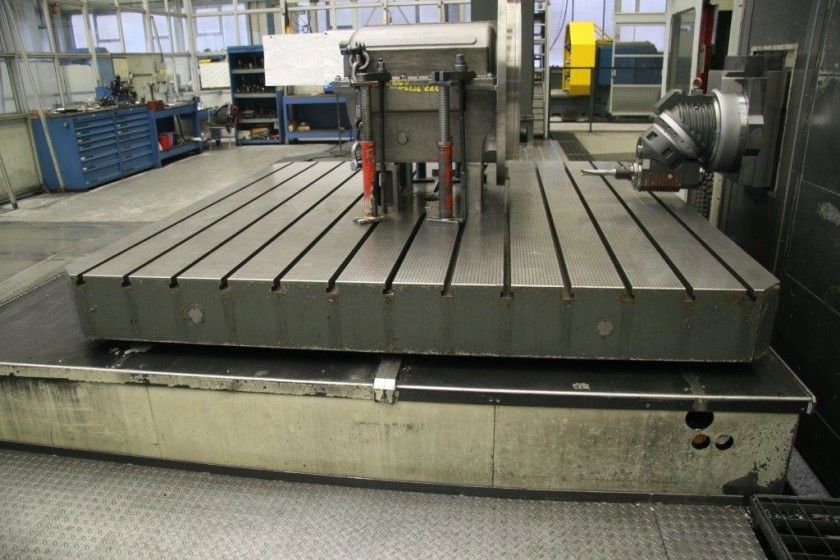

Rotary table
Liquid cooling system
