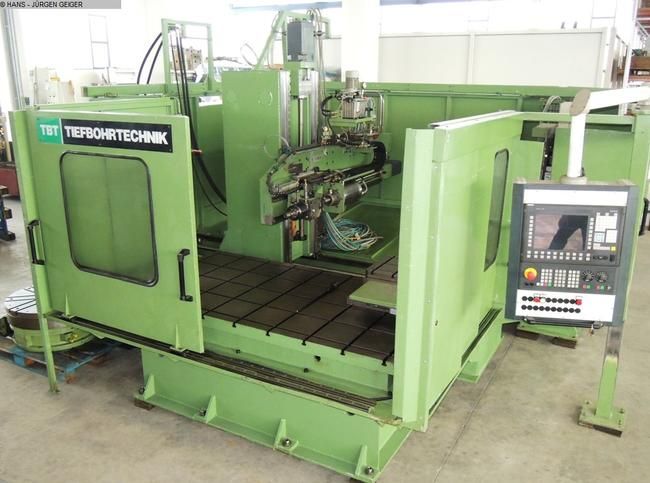

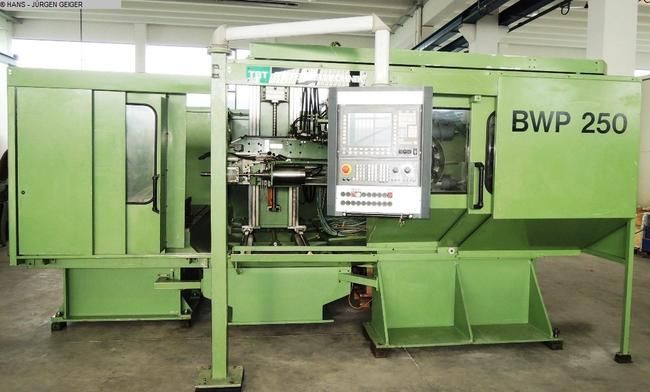

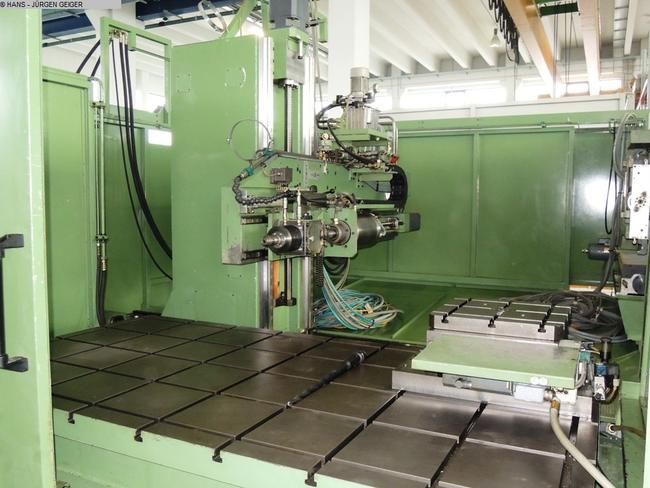

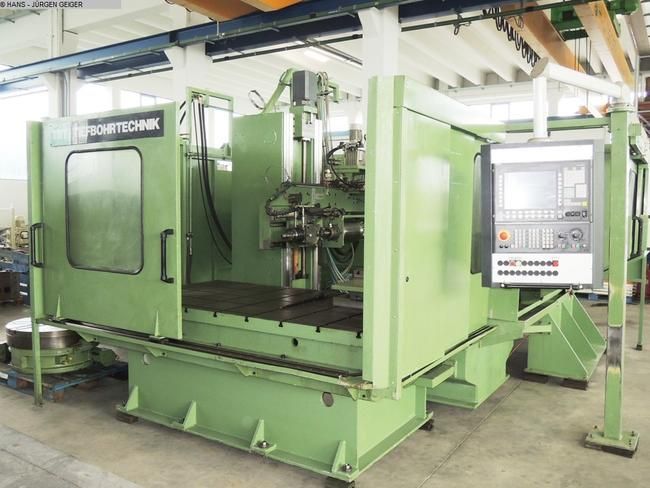

Horizontal Boring Machine TBT BWP 250

Category Boring Machines TBT ›
Manufacturer TBT ›

ARCHIVED AD
Horizontal Boring Machine TBT BWP 250 was manufactured by the machine manufacturer TBT. Machine TBT BWP 250 was built in 1996 year.

General data

Location Germany
region Baden-Württemberg
Year of manufacture 1996
Warranty Without warranty

Technical parameters

Length of the working table 2000 mm
Width of the working table 1200 mm
Power of the spindle drive 7 kW
Minimum rotary speed of the spindle 15000 1/min
Travel length X-axis (mechanical feed) 2000 mm
Travel length Y-axis (mechanical feed) 1200 mm
Travel length Z-axis (mechanical feed) 1100 mm
Maximum feed rate in X-axis 250 mm/s
Maximum feed rate in Y-axis 250 mm/s
Maximum feed rate in Z-axis 250 mm/s
Total power demand 25 kW
Machine weight 12.5 t

Equipment

SIEMENS SINUMERIK 840 D
CNC control
Liquid cooling system
