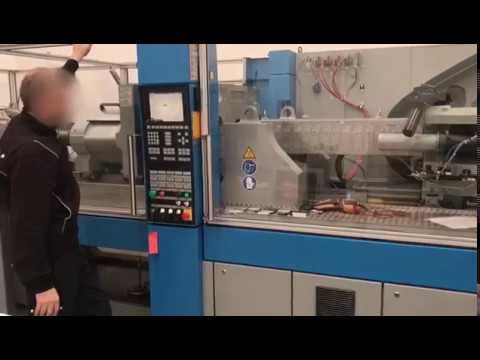

Plastics Injection Molding Machine ENGEL E-MOTION 940/180

Category Injection Molding Machines ENGEL ›
Manufacturer ENGEL ›

ARCHIVED AD
Plastics Injection Molding Machine ENGEL E-MOTION 940/180 was manufactured by the machine manufacturer ENGEL. Machine ENGEL E-MOTION 940/180 was built in 2004 year.

General data

Location Italy
region Macerata
Year of manufacture 2004
Warranty Without warranty
Technical condition Very good
Loading The seller organizes the loading - included in the price of the machine
Payment Before receipt
Status A test can be performed

Technical parameters

Clamping force 183.5 t
Injection capacity 475 cm3
Minimum distance between the plates for mounting the mold 200 mm
Maximum distance between the plates for mounting the mold 550 mm
Length of the injection mold stroke 450 mm
Height of the plate for mounting the mold 750 mm
Width of the plate for mounting the mold 950 mm
Distance between the columns (horizontal) 950 mm
Distance between the columns (vertical) 750 mm
Power of the ejector 3.8 t
Length of the ejector stroke 150 mm
Screw diameter 55 mm
Maximum injection pressure 155 MPa
Machine length 6619 mm
Machine width 1900 mm
Machine height 2247 mm
Weight of the injection molding machine 16.3 t

Equipment

Mold closing system - knee joint
Mold closing system - servo motor
Technical documentation
CE Declaration
