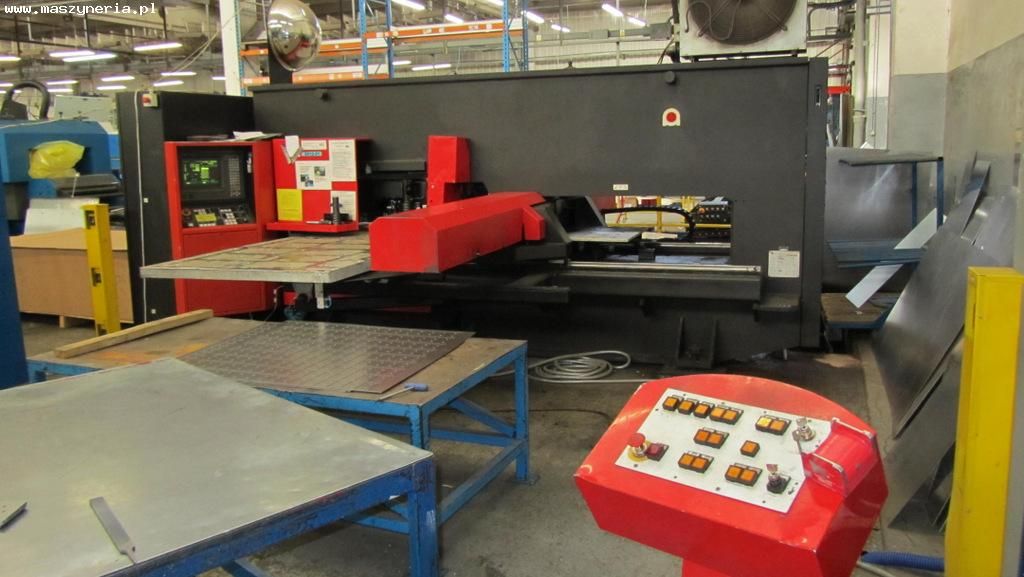

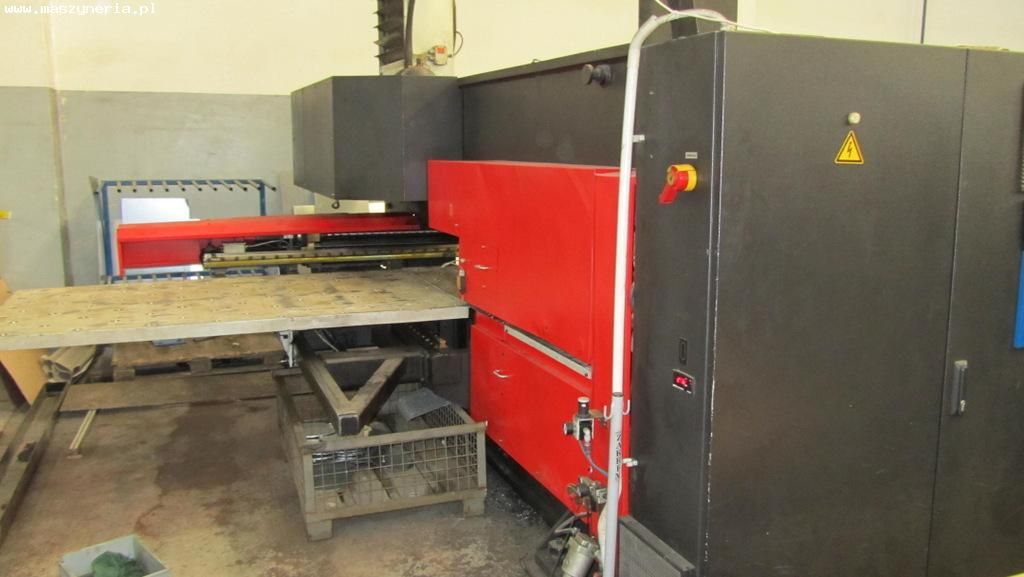

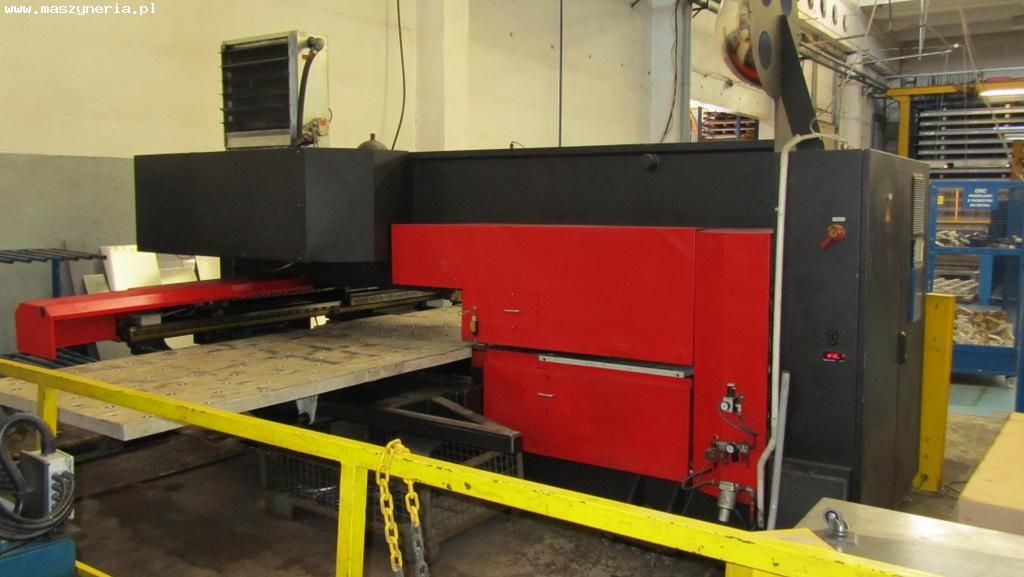

Punching Machine with Laser AMADA ARCADE 212
Punching Machine with Laser AMADA ARCADE 212 was manufactured by the machine manufacturer AMADA. Machine AMADA ARCADE 212 was built in 1996 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 1996 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Loading | The seller organizes the loading - included in the price of the machine |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Maximum pressure for punching | 20 t |
| Maximum thickness of the punched sheet metal | 6 mm |
| Table length (X) | 2032 mm |
| Table width (Y) | 1270 mm |
| Maximum table load (evenly distributed) | 120 kg |
| Maximum tool diameter | 88.9 mm |
| Number of tools in the magazine | 28 pcs |
| Maximum feed rate in X-axis | 60 m/min |
| Maximum feed rate in Y-axis | 60 m/min |
| Accuracy of positioning | 0.1 mm |
| Machine height | 2050 mm |
| Machine length | 4900 mm |
| Machine width | 4100 mm |
| Machine weight | 10500 t |
Equipment | |
|---|---|
| FANUC 16PA | |
| CNC control | |
| Central lubrication | |
| Lighting | |
| Technical documentation | |
