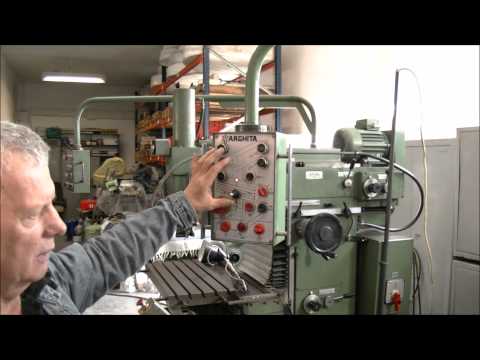

Toolroom Milling Machine MARGHITA FUS 32
Toolroom Milling Machine MARGHITA FUS 32 was manufactured by the machine manufacturer MARGHITA. Machine MARGHITA FUS 32 was built in 1987 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 1987 |
| Warranty | Without warranty |
| Technical condition | Good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Length of the working table | 1000 mm |
| Width of the working table | 320 mm |
| Travel length X-axis (mechanical feed) | 550 mm |
| Travel length Y-axis (mechanical feed) | 320 mm |
| Travel length Z-axis (mechanical feed) | 400 mm |
| Maximum feed rate in X-axis | 400 mm/s |
| Total power demand | 3 kW |
| Number of T-slots in the table | 5 pcs |
| Machine height | 1780 mm |
| Machine length | 1546 mm |
| Machine width | 1222 mm |
| Machine weight | 1.7 t |
Equipment | |
|---|---|
| Swivel head (1 axis) | |
| Quill feed | |
| Spindle drive on overarm | |
| Slotting head | |
| Additional high speed head | |
| Boring head | |
| Swivel working table (2 axis) | |
| Automatic feed in the axis X and Y | |
| Automatic feed in the axis Z | |
| Rapid feed of the table | |
| Independent feed drive for each axis | |
| Angular machine vice | |
| Rotary table | |
| Dividing head | |
| Tailstock | |
| Overarm for dividing head and tailstock | |
| Arbor support | |
| Central lubrication | |
| Liquid cooling system | |
| Lighting | |
| Technical documentation | |
