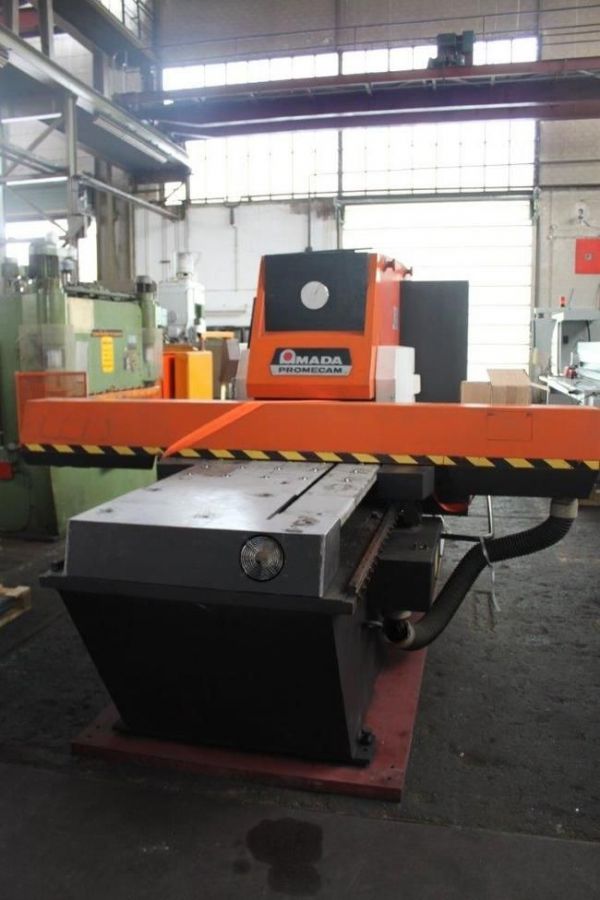

Turret Punch Press AMADA ARIES 245
Turret Punch Press AMADA ARIES 245 was manufactured by the machine manufacturer AMADA. Machine AMADA ARIES 245 was built in 1989 year.
General data | |
|---|---|
| Location | Germany |
| region | Bayern |
| Year of manufacture | 1989 |
| Warranty | Without warranty |
Technical parameters | |
|---|---|
| Maximum force (pressing) | 20.4 t |
| Maximum thickness of the sheet metal | 4.5 mm |
| Table length (X) | 2540 mm |
| Table width (Y) | 1000 mm |
| Maximum punching speed (number of impacts per minute) | 180 1/min |

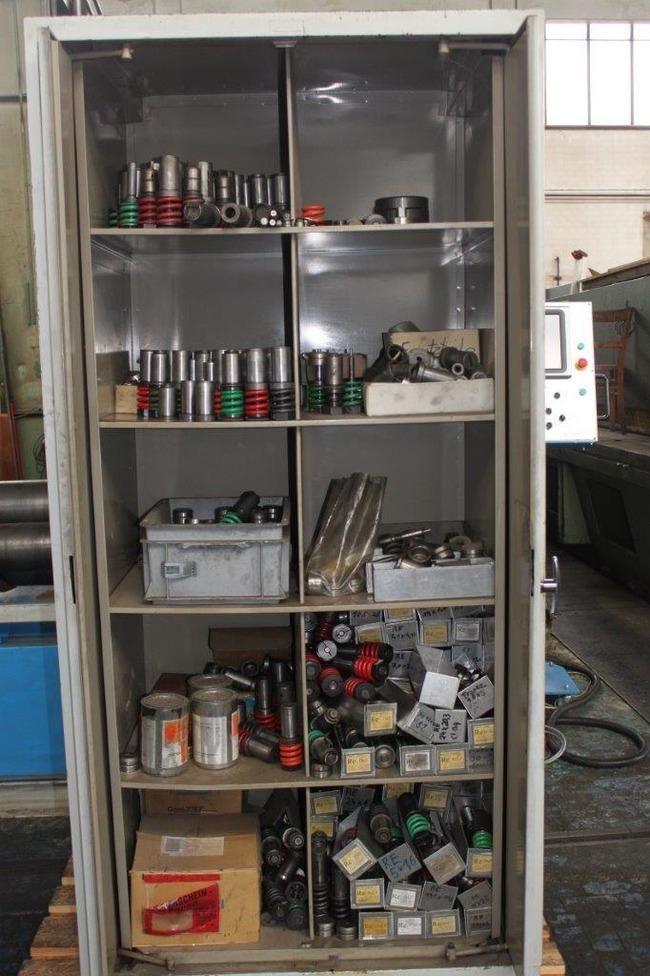

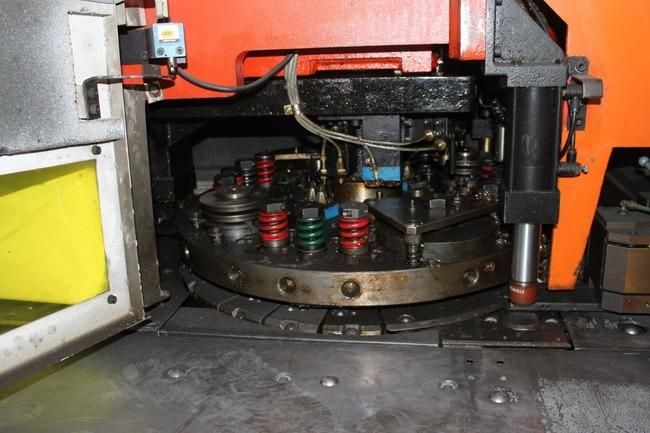

| Number of tools in the turret | 18 pcs |
| Maximum stroke of the upper tool | 32 mm |
| Maximum feed rate in X-axis | 40 m/min |
| Maximum feed rate in Y-axis | 40 m/min |

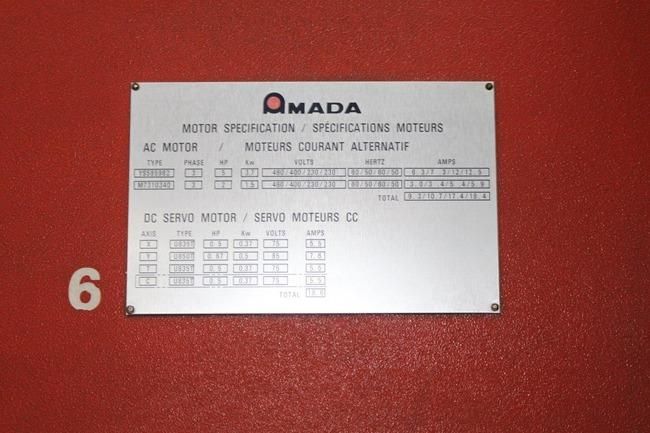

| Total power demand | 11 kW |
| Machine height | 1950 mm |
| Machine length | 2700 mm |
| Machine width | 3784 mm |
| Machine weight | 7.5 t |
Equipment | |
|---|---|

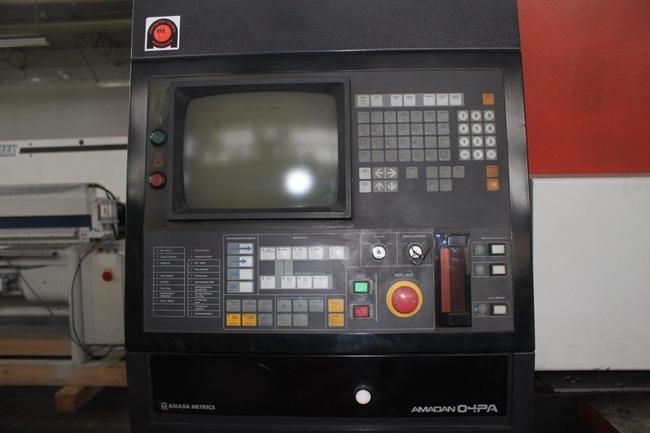

| AMADAN 04 PA | |
| CNC control | |
