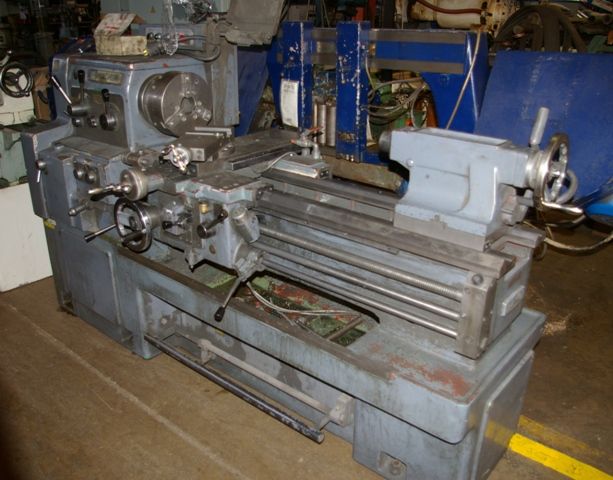

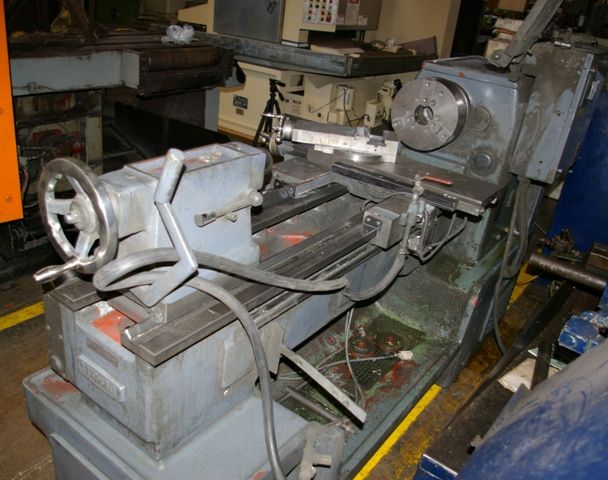

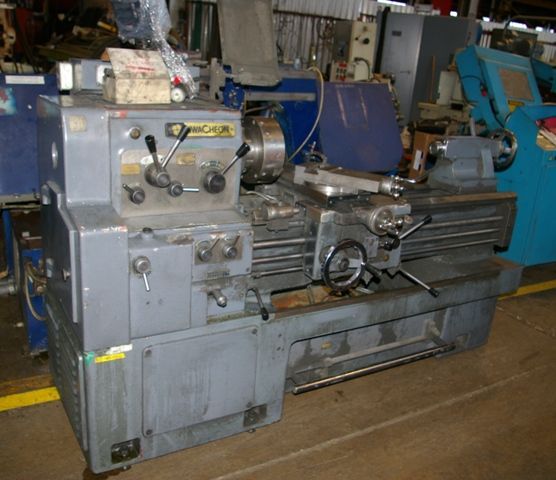

Universal Lathe HWACHEON HL 435
Universal Lathe HWACHEON HL 435 was manufactured by the machine manufacturer HWACHEON. Machine HWACHEON HL 435 was built in 1991 year.
General data | |
|---|---|
| Location | United States |
| region | Illinois |
| Year of manufacture | 1991 |
| Warranty | Without warranty |
Technical parameters | |
|---|---|
| Maximum length of the turning | 1016 mm |
| Turning diameter over bed (max) | 435 mm |
| Turning diameter over cross slide (max) | 247.7 mm |
| Turning diameter in gap | 649.3 mm |
| Spindle bore | 52 mm |
| Power of the spindle | 3.7 kW |
| Minimum rotary speed of the spindle | 32 1/min |
| Maximum rotary speed of the spindle | 1800 1/min |
Equipment | |
|---|---|
| Digital readouts | |
| 3-jaw chuck | |
| Cooling system | |
