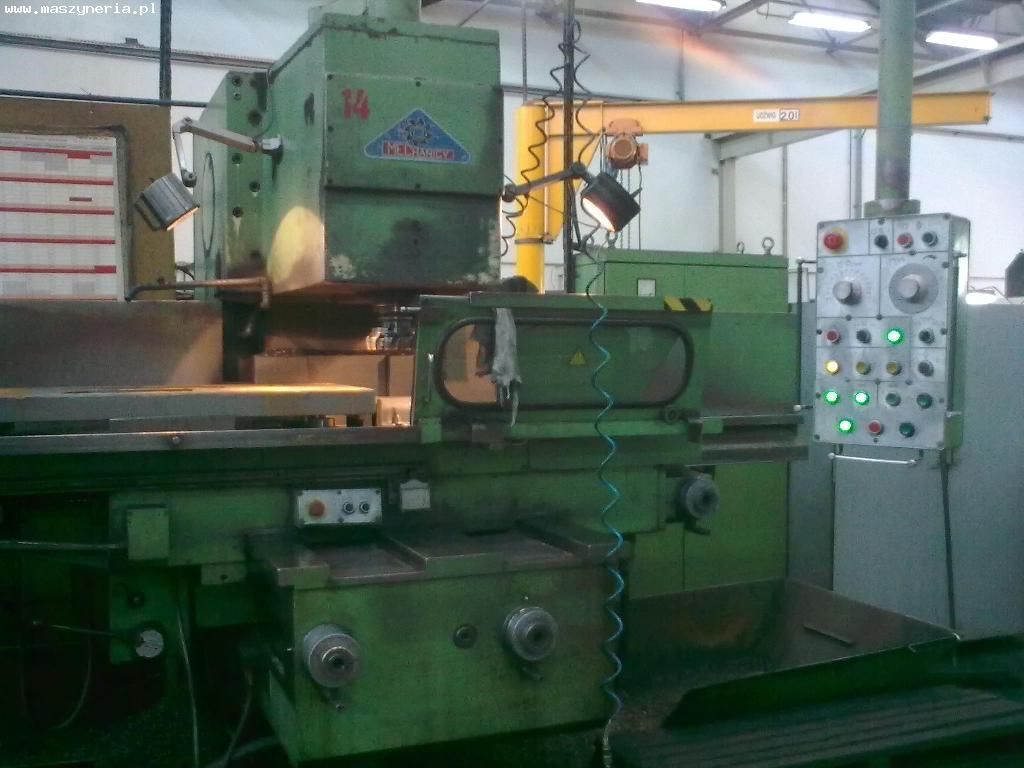

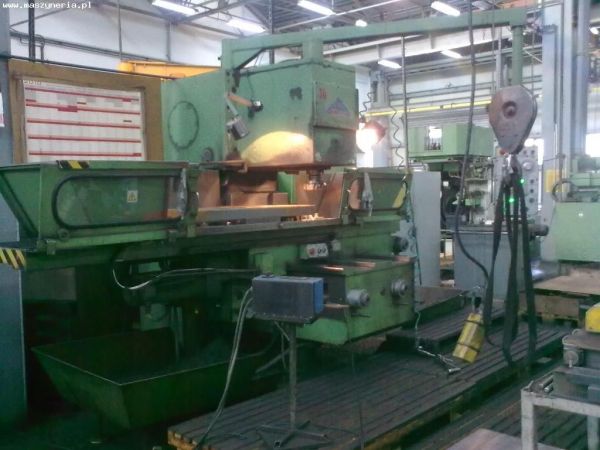

Vertical Milling Machine PONAR-PRUSZKÓW FYJ 40
Vertical Milling Machine PONAR-PRUSZKÓW FYJ 40 was manufactured by the machine manufacturer PONAR-PRUSZKÓW. Machine PONAR-PRUSZKÓW FYJ 40 was built in 1995 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 1995 |
| Warranty | Without warranty |
| Technical condition | Good |
| Loading | The seller organizes the loading - included in the price of the machine |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Length of the working table | 2000 mm |
| Width of the working table | 550 mm |
| Number of rotary speeds of the spindle | 16 pcs |
| Minimum distance of the spindle from the table | 90 mm |
| Maximum distance of the spindle from the table | 610 mm |
| Travel length X-axis (mechanical feed) | 1280 mm |
| Travel length Y-axis (mechanical feed) | 430 mm |
| Maximum feed rate in X-axis | 5000 mm/s |
| Maximum feed rate in Y-axis | 5000 mm/s |
| Maximum feed rate in Z-axis | 1250 mm/s |
| Total power demand | 22 kW |
| Travel length X-axis (hand feed) | 1320 mm |
| Travel length Y-axis (hand feed) | 470 mm |
| Number of T-slots in the table | 5 pcs |
Equipment | |
|---|---|
| Digital readouts | |
| Central lubrication | |
| Lighting | |
| Technical documentation | |
